Remove/Install Loudspeakers In Front Doors - AR82.62-P-7845RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition, remove transmitter key if necessary and place transmitter key outside of KEYLESS-GO transmission range

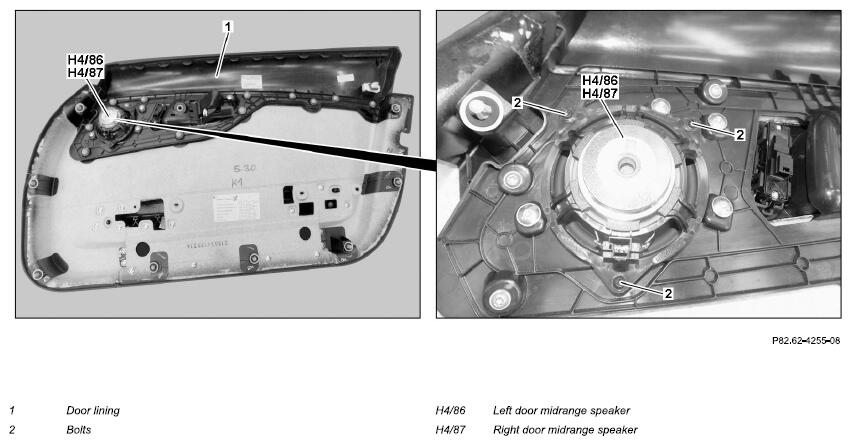

2	Remove door lining (1) at left or right		AR72.10-P-1000RG
		Mounting wedge	Fig 2
		Clip remover	Fig 1
3	Remove bolts (2)
4	Remove left door midrange speaker (H4/86) or right door midrange speaker (H4/87) from door lining (1)
5	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
