Remove/Install Left Footwell Bass Speaker - AR82.62-P-7820RG
Model 190

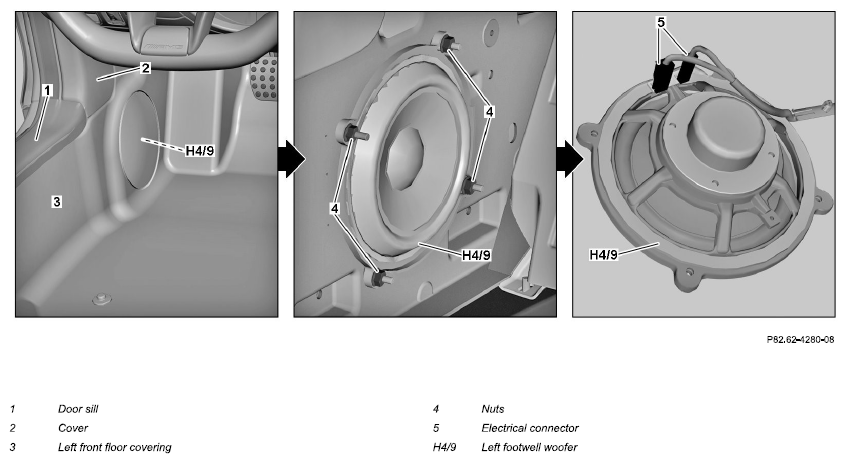

| Remove/install | |||
| 1 | Remove door sill (1) | AR68.30-P-4100RG | |
| 2 | Unclip cover (2) | ||
| 3 | Remove left front floor covering (3) | AR68.20-P-2050RG | |
| 4 | Remove nuts (4) from left footwell woofer (H4/9) | ||
| 5 | Disconnect electrical connections (5) | ||
| 6 | Remove left footwell woofer (H4/9) | ||
| 7 | Install in the reverse order |
