Remove/Install Lamp Unit, Backup Lamp And Rear Fog Lamp - AR82.10-P-5110RGM
Model 190
With Code M030 (GT R version)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | |
| Remove/install | |||

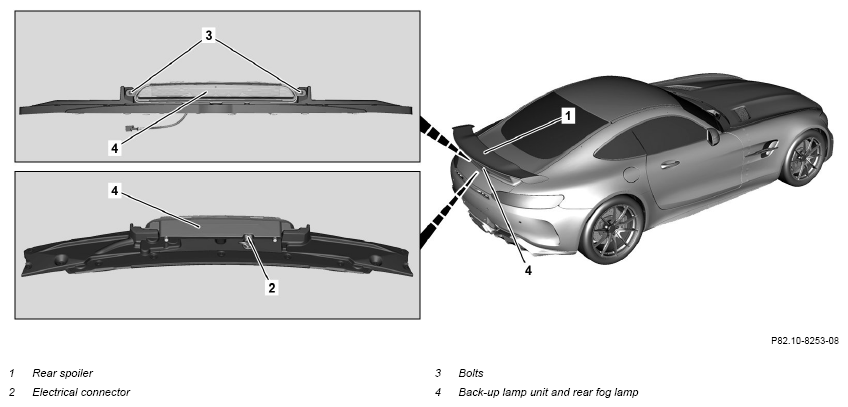

| 1 | Remove rear spoiler (1) | AR88.30-P-0500RGM | |
| Model 190 with code M030 (GT R version) except code M032 (Black Series version) |
|||
| 2 | Release and disconnect electrical connector (2) | ||
| 3 | Remove screws (3) | ||
| 4 | Remove back-up lamp unit and rear fog lamp (4) | ||
| 5 | Install in the reverse order |
