Remove/Install Lamp Unit, Backup Lamp And Rear Fog Lamp - AR82.10-P-5110RG
Model 190
Except Code M030 (GT R version)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

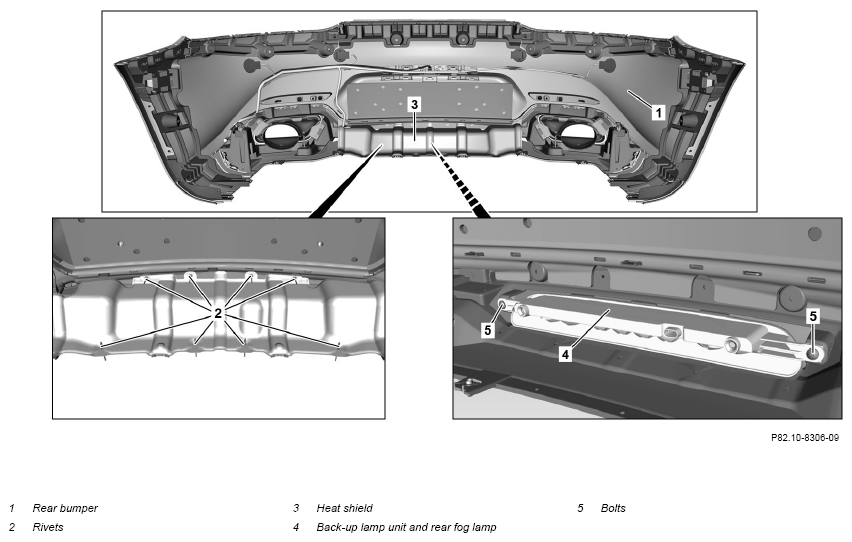

| 1 | Remove rear bumper (1), and place on a soft, clean base | AR88.20-P-2200RG | |
| 2 | Drill out rivets (2) on heat shield (3) | ||
| 3 | Remove heat shield (3) | ||
| 4 | Release and disconnect electrical connector at backup lamp unit and rear fog lamp (4) | ||
| 5 | Remove screws (5) | ||
| 6 | Remove back-up lamp unit and rear fog lamp (4) | ||
| 7 | Install in the reverse order |
