Remove/Install HERMES Control Unit - AR82.95-P-0019RGR
Model 190.4
With Code 360 (HERMES UMTS)
Model 190.4
With Code 362 (HERMES communications module LTE)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of HERMES control unit (N112/9) | When replacing the HERMES control unit (N112/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Release side trim in rear, and place to side | AR68.30-P-4780RGR | |

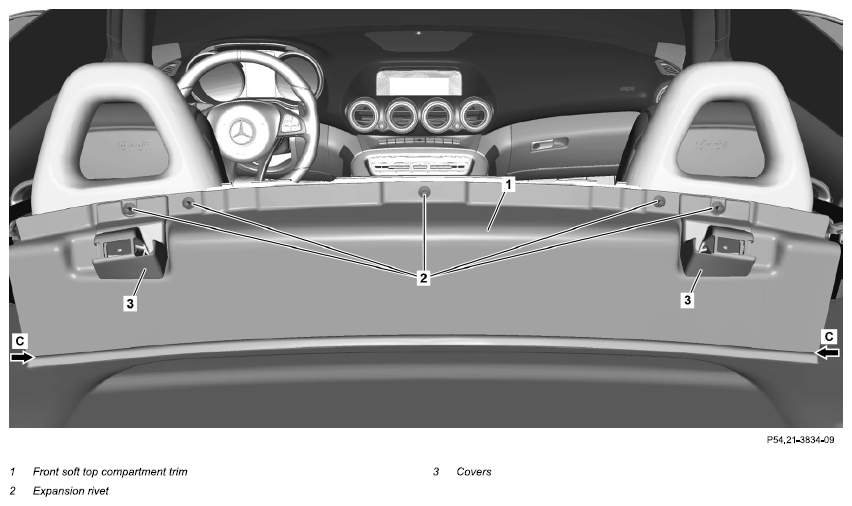

| 3 | Unclip expansion rivet (2) | ||
| 4 | Remove covers (3) | ||
| 5 | Remove front soft top compartment trim (1) | ||

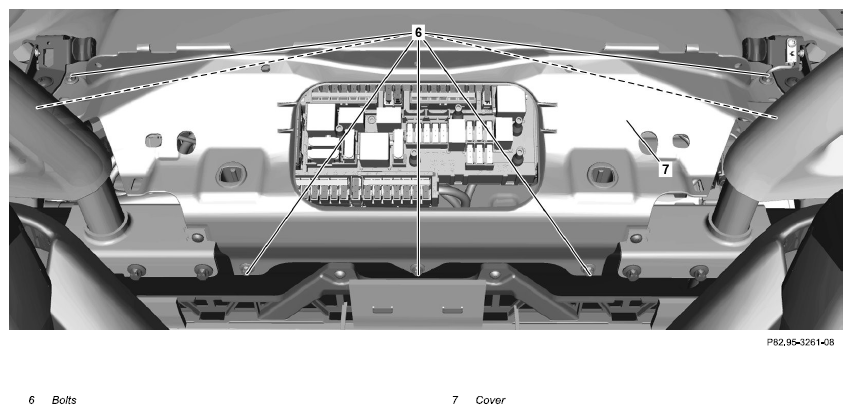

| 6 | Remove bolts (6) | ||
| 7 | Take off cover (7) | ||

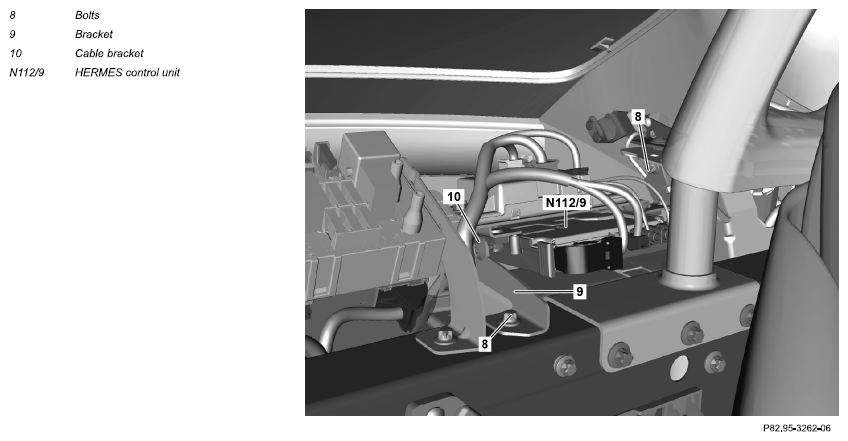

| 8 | Unclip cable bracket (10). | ||
| 9 | Remove bolt (8) | ||
| 10 | Remove HERMES control unit (N112/9) towards front together with the bracket (9) | It must be ensured that electric lines are not stretched or kinked. In order to prevent damage. |
|
| 11 | Release and disconnect electrical connectors from HERMES control unit (N112/9) | ||
| 12 | Remove HERMES control unit (N112/9) from the bracket (9) | ||
| 13 | Install In the reverse order |
