Remove/Install Center High-Mounted Stop Lamp - AR82.10-P-5375RG
Model 190.3
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the AS00.00-Z-0009-01A operating area of mechanical components when moving components. | AS00.00-Z-0011-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

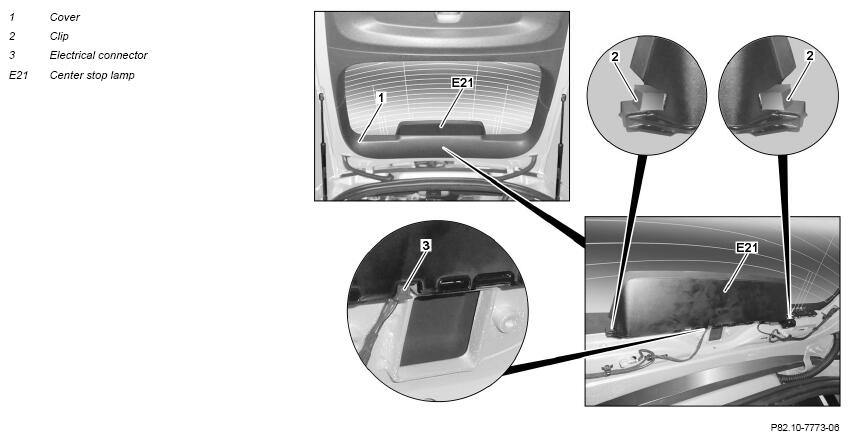

| 2 | Remove inner trim (1) on upper window frame of liftgate | AR72.20-P-1015RG | |
| 3 | Release and disconnect electrical connection (3) | ||
| 4 | Release clamps (2) of center brake lamp (E21) at right and left by pushing outwards | ||
| 5 | Remove center brake lamp (E21) downwards | ||
| 6 | Install in the reverse order |
