Remove/Install Bass Speaker Amplifier - AR82.62-P-7719RG
Model 190.3
Up To Model Year 2016
With Code 811 (High-End sound system)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove right paneling in trunk | AR68.30-P-4800RG | |

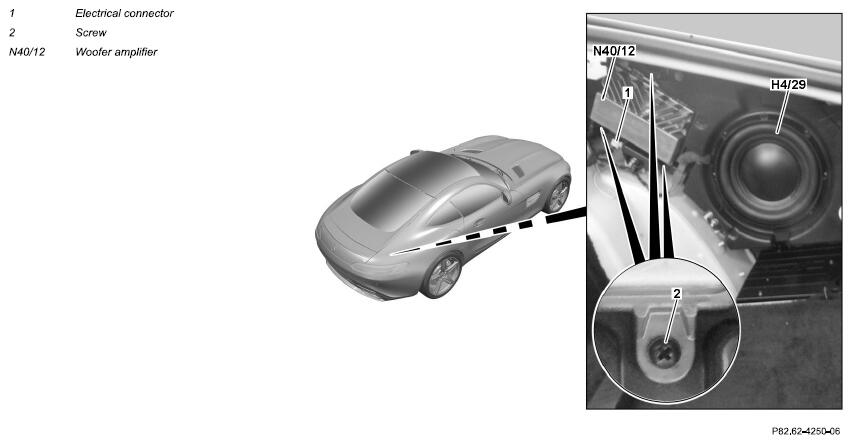

| 3 | Release and disconnect electrical connection (1) | ||
| 4 | Remove screws/bolts (2) from woofer amplifier (N40/12) | ||
| 5 | Remove woofer amplifier (N40/12) | ||
| 6 | Install in the reverse order |
