Check Setting Of High Beam - AP82.10-P-8260-02E

Model 190

Notes on working in engine compartment

AH60.00-P-0042-01RG

Shown on ECE version headlamp

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

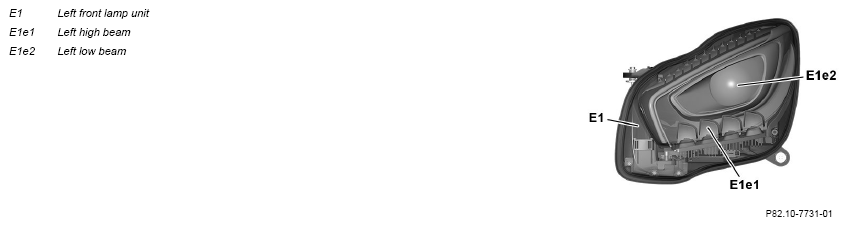

1. Align headlamp aimer (01) parallel to vehicle level with high beam at left (E1e1) or right
2. Check setting of high beam

   Corrections must not be made to the adjustment screws (H, S) on the headlamp.

   Otherwise, the previously-adjusted low beam will be misadjusted!

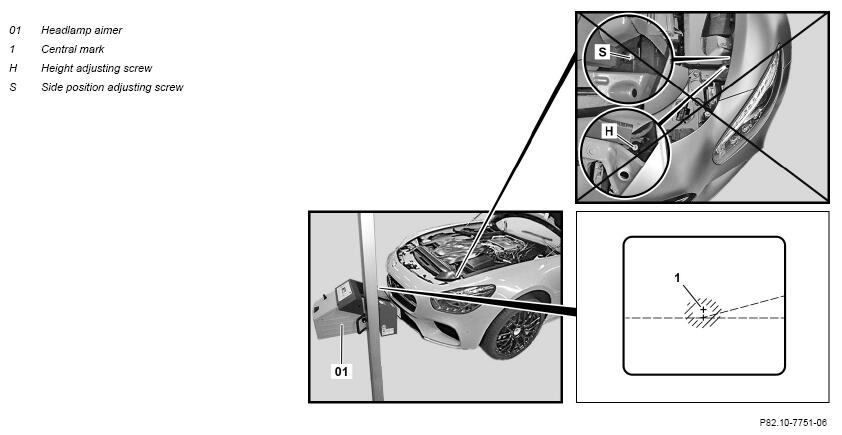

   The center of the light beam must be positioned on the central mark (1) in the headlamp aimer (01).

   If high beam alignment is not correct:

   ↓

   Rectify problem subject to separate repair order.
