Audio Mode, Function - GF82.85-P-2030RRM

Model 190 as of 12/1/18

as of model year 2019

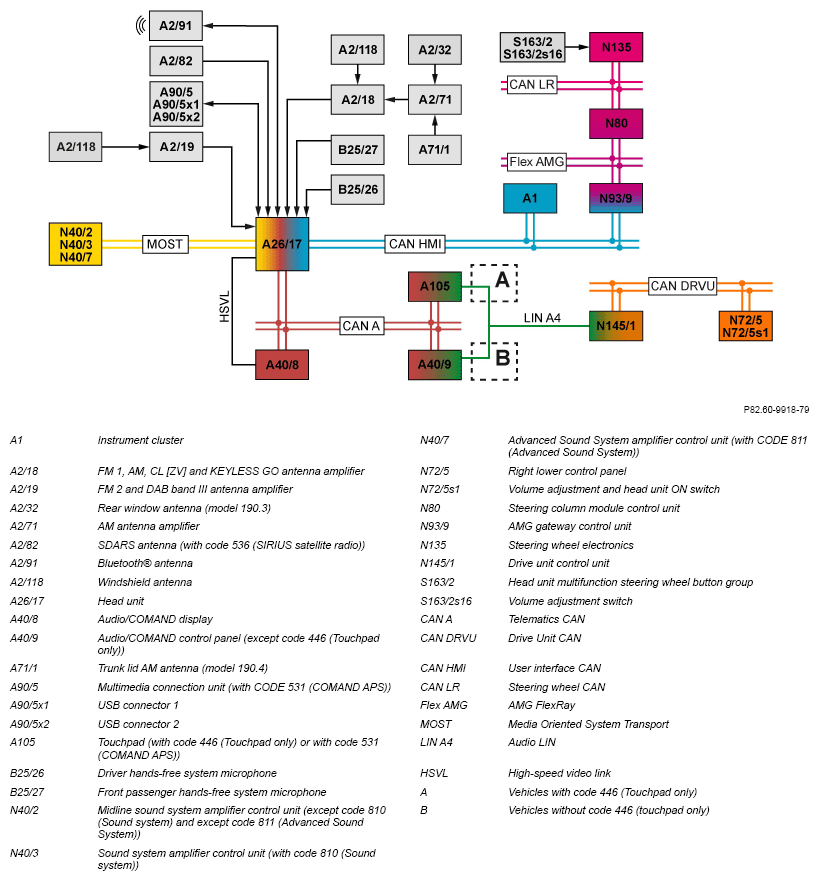

G16682875Courtesy of MERCEDES-BENZ USA

Function requirements, audio mode, general

Steering wheel electronics →

Steering wheel CAN →

General information on the audio mode

The head unit can be switched on and off and the volume adjusted with the Volume adjustment and Head unit ON switch on the right lower control panel.

The right lower control panel transmits the operation signals over the following path:

Drive Unit CAN →

Drive Unit control unit →

Audio LIN→

Audio/COMAND control panel (except code 446 (Touchpad only)) or Touchpad (with code 446 (Touchpad only)) →

Telematics CAN →

Head unit

The menu contents are generated by the head unit and shown on the Audio/COMAND display. The head unit sends control signals (e.g. switch-on signal) to the Audio/COMAND display via the telematics CAN. The picture data is transferred by the head unit via a HSVL line to the Audio/COMAND display.

The audio mode functions can be selected, activated and adjusted using the Audio/COMAND controller of the Audio/COMAND control panel (except code 446 (Touchpad only)). The "Back" button supports navigation in the menus. The Audio/COMAND operating unit sends the operation signals to the head unit via the telematics CAN.

The audio mode functions can be operated using the touchpad (with code 446 (Touchpad only) or with code 531 (COMAND APS)). The touchpad sends the operation signals to the head unit via the telematics CAN.

The audio mode functions can be selected, activated and regulated with the head unit multifunction steering wheel button group. The volume can be changed using the head unit multifunction steering wheel button group's volume adjustment switch. The head unit multifunction steering wheel button group sends the control signals via the following route:

Steering column tube module control unit →

AMG FlexRay →

AMG gateway control unit →

User interface CAN →

Head unit

On vehicles with code 531 (COMAND APS), the audio mode functions can be operated with the voice control system. The voice commands are converted into electric signals by the driver hands-free system microphone and forwarded to the head unit.

IMPORTANT Radio stations and media sources can also be selected via the instrument cluster.

The head unit transmits the audio signals to the following components via MOST:

The audio mode consists of the following component functions:

Function sequence for volume and sound settings

All volume and tone settings are selected using the head unit. This is done either by the user or automatically by the head unit. The sound settings are shown on the Audio/COMAND display. The sound settings can be changed individually for applications with the "Sound" menu and the system returned to the default settings via the system settings. On vehicles with code 810 (Sound system) or code 811 (Advanced Sound System), the head unit has additional tone settings.

The volume and sound settings function is subdivided into the following subfunctions:

Function sequence for manual volume and sound settings

Manually volume and tone settings can be selected as follows:

IMPORTANT The audio output via the speaker system is interrupted by pressing the Volume adjustment and Head unit ON switch or the volume adjustment switch (mute function).

Function sequence for speed-dependent volume control (SDV [GAL])

The volume is adapted to the noise situation in the vehicle interior with the help of the speed-dependent volume control. The noise level in the vehicle interior is determined via the vehicle speed, whereby the assignment depends on the respective body variant. The instrument cluster transmits the vehicle speed data to the head unit via the user interface CAN. In accordance with this information, one of the following components raises or lowers the output level:

The Midline sound system amplifier control unit or Advanced Sound System amplifier control unit receives the data for volume adjustment from the head unit over MOST.

On vehicles with code 810 (Sound system) or with code 811 (Advanced Sound System), the SDV [GAL] is additionally optimized with interference recording by the driver hands-free system microphone and the front passenger hands-free system microphone. The sound system amplifier control unit or Advanced sound system amplifier control unit receives the microphone signals from the head unit via MOST and adapts the volume of the audio output.

Function sequence for radio mode (FM, AM, HD radio)

The antennas receive signals for the FM (ultra-short wave) and AM (medium wave) frequency bands. The following useful signals relevant for the radio reception are modulated onto these signals:

Vehicles with code 494 (USA version) or code 460 (Canada version) are equipped for receiving HD radio. For HD radio, digital signals are sent via the radio frequencies in addition to the analog signals. This makes audio signals available in better reception quality, and additional information and services can

FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (FM 1) and FM 2 and DAB band III antenna amplifier (FM 2) →

Head unit

The AM signals are received as follows:

Rear window antenna (model 190.3) or trunk lid AM antenna (model 190.4) →

AM antenna amplifier →

FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier →

Head unit

The radio mode function sequence consists of the following procedures:

also be received and used. These signals are processed by the audio tuner integrated in the head unit.

The windshield antenna sends the FM-1 and FM-2 signals or the HD radio signals via the following route:

AM tuner function sequence

For the MW radio frequency bands, the useful signals are broadcast using amplitude modulation (AM). The AM tuner integrated into the head unit demodulates these signals. In other words, it separates the useful signals (audible frequencies) from the carrier signal (inaudible).

Function sequence for FM double tuner with diversity reception (FM)

For the FM radio frequency band, the useful signals are broadcast using frequency modulation (FM). The FM twin tuner integrated into the head unit demodulates these signals. In other words, it separates the useful signals (audible frequencies) from the carrier signal (inaudible). The head unit integrates the useful signals from the FM 1, AM, CL [ZV], and KEYLESS-GO antenna amplifier and the FM 2 and DAB Band III antenna amplifier to form an optimized signal (phase diversity).

IMPORTANT With CODE 498 (Japan version)

An additional tuner function is integrated in the head unit for the VICS-FM multiplexer (Vehicle Information and Communication System) additional information.

Function sequence for Radio Broadcast Data System (RBDS) (With Code 494 (USA version) or code 460 (Canada version)) or Radio Data System (RDS) (Except Code 494 (USA version), Except Code 460 (Canada version) and Except Code 498 (Japan version))

In addition to the radio program, many radio stations (FM) also broadcast additional digital information such as station name, type of program and traffic message channel recognition. This information is evaluated by the head unit and shown on the Audio/COMAND display, if an RDS or RBDS station is tuned and the "RDS" or "RBDS" function is activated.

Function sequence for HD radio (With Code 494 (USA version) or code 460 (Canada version))

The audio tuner integrated in the head unit decodes the digital signals. Additional information and services are shown on the Audio/COMAND display, e.g. program service data, artist experience, traffic information.

Function sequence for SD (Secure Digital) card (With Code 531 (COMAND APS))

The head unit can display audio files stored on an SD card as a media source on the Audio/COMAND display and play them through the speaker system. The SD card slot with card reader is integrated in the multimedia connection unit. The head unit reads in the signals of the multimedia connection unit.

Function sequence for media connections

External devices (e.g.audio player, Universal Serial Bus (USB) memory stick, iPods and MTP devices) can be connected to the multimedia connection unit's USB port 1 or USB port 2. The head unit reads in the signals of the multimedia connection unit.

IMPORTANT With CODE 518 (Media Interface)

3 adapter cables are enclosed to connect the external devices.

When playing pieces of music, the corresponding cover art is shown on the Audio/COMAND display if the cover art in question is stored in the portable terminal (e.g. iPod and USB). The head unit adapts the resolution and converts the file into JPG format. When searching for albums or pieces of music on the connected device, the corresponding cover art is also shown on the Audio/COMAND display.

Function sequence for digital radio (DAB) (With Code 537 (Digital radio (DAB)))

The head unit enables the reception of digital radio in DAB format. The head unit receives two DAB band III signals (DAB 1 and DAB 2) for reception diversity (selection of best signal). With DAB, the stations are categorized into groups known as "Ensembles". User guidance takes place via the head unit. The information or displays required for operation are output by the head unit via the HSVL line on the Audio/COMAND display.

The DAB 1 signal is received over the following route:

Windshield antenna →

FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier →

Head unit

The DAB 2 signal is received via the following route:

Windshield antenna →

FM 2 and DAB Band III antenna amplifier→

Head unit

The FM double tuner provides the FM audio signals when the DAB mode is active. If the DAB reception starts to deteriorate, reception switches over to the FM station, but only after checking and ensuring a better signal reception. In this case, the head unit compensates the time lag between the digital and the analog signal. This makes the switchover almost inaudible ("seamless linking").

The DAB tuner unit is designed as a diversity tuner and provides the following advantages:

Function sequence for Satellite Digital Audio Radio Service (SDARS) (With Code 536 (SIRIUS satellite radio))

The head unit receives the "Sirius satellite radio" over the provider's transmitter SDARS antenna. The SDARS system is controlled by the head unit. The information or displays required for control are shown on the Audio/COMAND display.

Search for devices and authorization

To achieve a diversity of channels, the Sirius satellite radio signal is broadcast 3 times (using two satellites and one terrestrial transmitter). The SDARS antenna receives all three channels of the Sirius satellite radio.

Function sequence for Bluetooth® audio

The Bluetooth® antenna allows the head unit to receive Bluetooth® audio signals from external devices. Bluetooth® audio is divided into the following additional information:

The same options exist for the authorization of a Bluetooth® audio source as are available for telephony:

The device lists are set up the same for Bluetooth® audio and telephony. In each list, only those devices that support the Bluetooth® profile of the respective function are found or displayed during a search. With Bluetooth® audio, these are Audio Video Remote Control Profiles (AVRCP) and Advanced Audio Distribution Profiles (A2DP), and for telephony it is the hands-free profile (HFP). If a device supports both functions, it appears in both lists after authorization.

Connection and reconnection

An authorized device can be connected by means of selection in the corresponding list. If a device is connected that supports both HFP and AVRCP/A2DP, all profiles are connected. In this case the device is a telephone and the source of Bluetooth® audio at the same time. On most devices, it is necessary to start the player on the device so that it can then be controlled via the head unit.

When starting, the head unit proceeds with the following strategy:

On vehicles with code 380 (Car telephony package) the head unit searches first for the SAP (SIM Access Profile) telephones last used in the vehicle. The first SAP telephone that replies to the query is connected if it is not connected to any other device via Bluetooth®.

The head unit subsequently (with code 380 (Car telephony package)) or generally (except code 380 (Car telephony package)) searches via Bluetooth® for the two mobile phones last logged in. The first mobile phone to respond to the request is connected. If this device also supports AVRCP/A2DP, these profiles are also connected.

If a device is connected that only supports HFP and a switch takes place to the "Bluetooth® Audio" application, the head unit displays "No Bluetooth® audio device connected" if appropriate audio sources are shown in the device list. The "Connect last device" menu enables the last used Bluetooth® audio source to be connected. However, the connection to the current telephone is interrupted here. If a device is connected that only supports AVRCP/A2DP and a change to the telephone application is then made, the connection to the device is disconnected and the head unit begins the search for the last two telephones.

Metadata and display of information

The display of information for Bluetooth® audio depends on the respective device used. If this supports AVRCP 1.0, "Audio streaming" is exclusively shown on the Audio/COMAND display and in the instrument cluster. As of AVRCP 1.3, the track, album and artist are shown. In addition, the currently played time of the track can also be conveyed. Furthermore, there is the option of changing between the normal track sequence and shuffle.

IMPORTANT It is possible to jump to the next or the previous track using the head unit finger navigation pad (S163/2s10).

IMPORTANT Notes on supported devices for Bluetooth® audio can be found under: http://www.mercedes-benz.com/connect.

  Electrical function diagram for audio mode function   PE82.60-P-2058-97HBB
  Overview of system components, telematics   GF82.85-P-9999RR
