Voice Control, Function - GF82.70-P-3020RR
Model 190
With Code 531 (COMAND APS)
Function requirements for voice control system, general
- Circuit 30g ON
- Transport mode not active
Voice control system, general
Functions of the driver information system are called up and operated via the voice control system (VCS). The VCS [SBS] is integrated in the head unit. The voice control system can be controlled by spelling out or entering complete words.
Model 190 as of 12/1/18
as of model year 2019
with code 16U (Carplay smartphone integration)
with code 531 (COMAND APS)
Model 190 as of 12/1/18
as of model year 2019
with code 17U (Google Automotive Link smartphone integration)
with code 531 (COMAND APS)
If Carplay or Android Auto is activated the voice control for Carplay or Android Auto is initiated by pressing and holding the voice control ON and favorites switch. If he voice control ON and favorites switch is pressed quickly, the voice control system of the head unit is switched o n.
Voice control system function sequence as of 01.12.2018
The voice control system is switched on and off using the voice control ON and favorites switch on the head unit multifunction steering wheel button group.

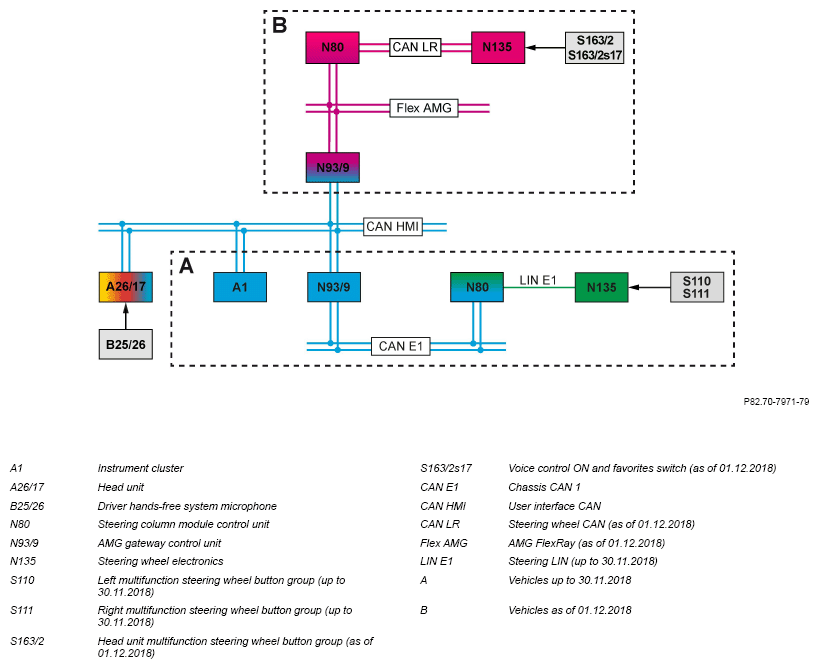

The operation signal of the voice control ON and favorites switch is forwarded via the following route:
Steering wheel electronics →
Steering wheel CAN →
Steering column tube module control unit →
AMG FlexRay →
AMG gateway control unit →
User interface CAN →
Head unit
Voice input takes place via the driver hands-free system microphone, which is connected to the head unit via direct lines. The words that are spoken are converted into electrical signals by the driver hands-free system microphone and forwarded to the head unit.
Voice control system function sequence up to 30.11.2018
The VCS is switched-on on the right multifunction steering wheel button group and switched off on the left multifunction steering wheel button group.
The control signal of the left multifunction steering wheel button group and the control signal of the right multifunction steering wheel button group is forwarded as follows:
Steering wheel electronics →
Steering LIN →
Steering column tube module control unit →
Chassis CAN 1 →
AMG gateway control unit →
User interface CAN →
Instrument cluster →
User interface CAN →
Head unit
Voice input takes place via the driver hands-free system microphone, which is connected to the head unit via direct lines. The words that are spoken are converted into electrical signals by the driver hands-free system microphone and forwarded to the head unit.
