Center Roof Paneling Installation - Ar65.10-P-1000-07RGA
 |
000 588 04 39 00 Rivet press tool |
|
WS60.00-P-0440B |
Model 190.3
except code 397 (Carbon roof)
except code 416 (Panoramic sunroof)
except code M032 (Black Series version)
GAP DIMENSIONS
| Number |
Designation |
Model 190.3 |
| BE60.00-P-1012-01EA |
Gap dimension, roof trim strip to windshield |
Dimension "L" |
mm |
2, 5 (±1) |
| See |
|
AR60.00-P-0700-01RG |
GAP DIMENSIONS
| Number |
Designation |
Model 190.3 |
| BE60.00-P-1014-01EA |
Gap dimension, sidewall panel to roof trim strip |
Dimension "N" |
mm |
2, 5 (±1) |
| See |
|
AR60.00-P-0700-01RG |
GAP DIMENSIONS
| Number |
Designation |
Model 190.3 |
| BE60.00-P-1017-01EA |
Gap dimension, roof/roof frame to windshield |
Dimension "Q" |
mm |
3 (±0, 5) |
| See |
|
AR60.00-P-0700-01RG |
GAP DIMENSIONS
| Number |
Designation |
Model 190.3 |
| BE60.00-P-1018-01EA |
Gap dimension, roof to liftgate rear window |
Dimension "R" |
mm |
5 (±1, 5) |
| See |
|
AR60.00-P-0700-01RG |
GAP DIMENSIONS
| Number |
Designation |
Model 190.3 |
| BE60.00-P-1019-01EA |
Gap dimension, roof to roof trim strip |
Dimension "S" |
mm |
3 (±0, 5) |
| See |
|
AR60.00-P-0700-01RG |
Courtesy of MERCEDES-BENZ USA REPAIR MATERIALS
| Number |
Designation |
Order number |
| BR00.45-Z-1012-13A |
Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) |
A 004 990 16 97 |
| BR00.45-Z-1051-13A |
Flow-form rivet structure 4 mm up to 5.15 mm clamping range (S38) |
A 000 991 26 33 |
| BR00.45-Z-1052-13A |
Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range (S48) |
A 000 991 27 33 |
| BR00.45-Z-1162-02A |
Parts kit for 2-component adhesive for body |
A 012 989 17 71 |
Replace self-pierce rivets installed on vehicle with high-strength flow-form rivets acc. to clamping range.
- Install and fit center and windshield roof paneling.
Only
fit windshield, do not
install and bond.
- Check gaps using
feeler gauge and adjust.
- Fix center roof paneling in place.
- Remove windshield.

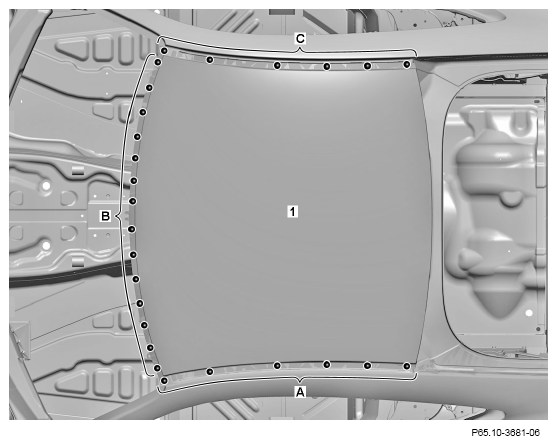

- Drill rivet holes with ø 6.7 mm in center of roof paneling (1) (areas A, C).
Transfer present positions for rivet connections from vehicle to new part. In the case of new part to new part connections, adapt these and prepare together.
- Prepare center roof paneling (1) with rivet press tool (area B).
Transfer present positions for rivet connections from vehicle to new part. In the case of new part to new part connections, adapt these and prepare together.
- Remove drilling shavings with wet/dry vacuum cleaner.
- Remove center roof paneling (1).
- Deburr rivet holes on center roof paneling (1) and body on both sides (areas A, C).
Observe pretreatment of bonding surfaces.
 Courtesy of MERCEDES-BENZ USA
|

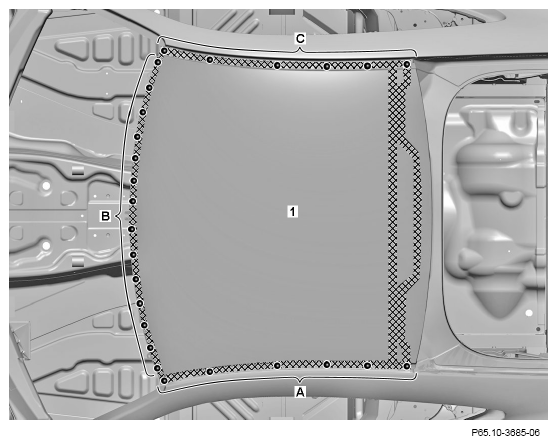

- On center roof paneling (1), apply 2-component adhesive (crosshatched areas).
Observe manufacturer's specification for drying and processing time of 2-component adhesive.
- Install center roof paneling (1), fit and fasten.
- Rivet center roof paneling (1) using rivet press tool and blind rivets (areas A, C).
Use blind rivet 6.5x12.5 (Klemmbereich 2 mm up to 5 mm, draw-off strength min. 19 kN).
- Rivet center roof paneling (1) using rivet press tool and flow-form rivets or flow-form rivets (area B).
Use flow-form rivets with structure 4 mm to 5.15 mm clamping range (S38) or flow-form rivets with structure 5.0 mm to 6.1 mm clamping range (S48).
 Courtesy of MERCEDES-BENZ USA
|
