Replace Brake Hoses - AR42.10-P-0013RG

Model 190

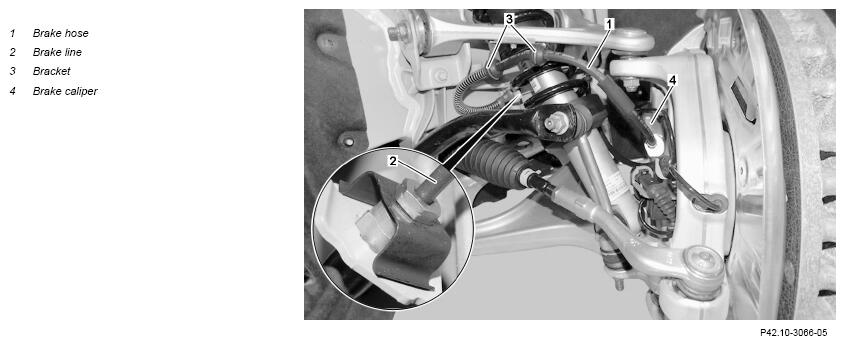

Shown on front axle

Courtesy of MERCEDES-BENZ USA

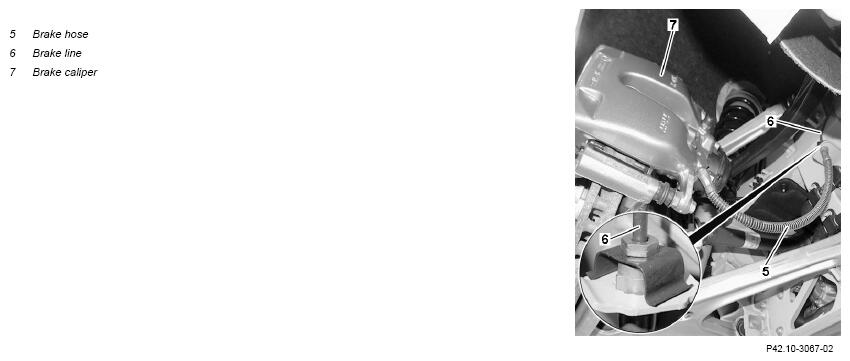

Shown on rear axle

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Topical note	Notes on externally invisible brake fluid loss		AH42.10-P-9406-02A
Topical note	Brake fluid notes		AH42.50-P-0001-01A
Topical note	Notes on installing brake hoses		AH42.10-P-9406-01A
	Remove/install
1	Detach corresponding complete wheel		AR40.10-P-1100RQ
2	Remove brake hose (1) from brake line (2)	Seal the connection fittings immediately using stop plugs. Otherwise the expansion reservoir for brake fluid can run empty. The expansion reservoir for brake fluid must not run completely empty.
		Retaining screw, brake line to brake hose	*BA42.10-P-1001-04M
		Box wrench bit	Fig 3
		Record plug	Fig 2
3	Detach brake hose (2) from bracket (3)	The bracket (3) is installed at the front axle only.
4	Disconnect brake hose (2) and (5) from brake caliper (4) and (7) and remove	Brake hose to brake caliper	*BA42.10-P-1002-04M
		Box wrench bit	Fig 3
		Box wrench	Fig 1
5	Install in the reverse order
6	Bleed brake system		AR42.10-P-0010RG

Fig 1: Identifying Box Wrench (000 589 76 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ USA
