Remove/Install Electric Parking Brake Actuator Motor - AR42.20-P-0600RG
Model 190
MODIFICATION NOTES
| 08.07.2020 | Remove air vent with holder. | Operation step 3. | |
| 08.09.2020 | Replace cable tie. | Operation step 3. |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove right or left rear wheel and tire assembly. | AR40.10-P-1100RQ | |
| 3 | Remove air vent with holder from left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2). | Model 190 with code M032 (Black Series version) |
|

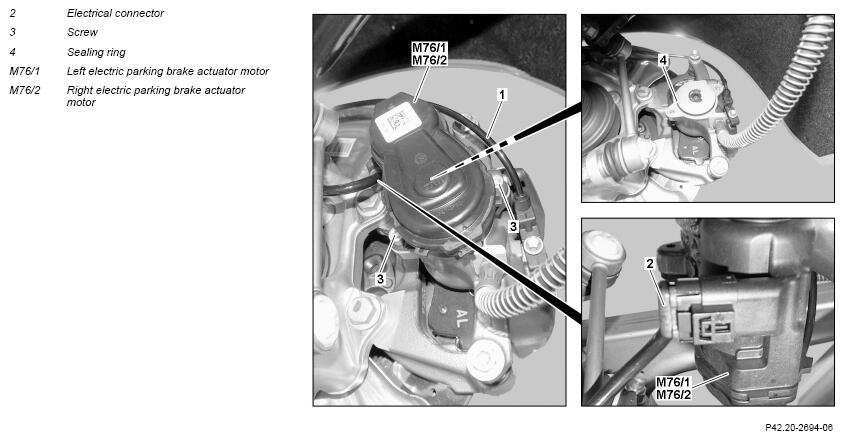

| 4 | Release and disconnect electrical connector (2) from left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2). | ||
| 5 | Unscrew screws (3) and remove left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2). | ||
| *BA42.10-P-1005-12T | |||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Perform brake test on test stand. | ||
| AP42.00-P-4290BA |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA42.10-P-1005-12T | Bolt, actuator motor to brake caliper | Nm | 12 |
