Remove/Install Rear Axle Brake Disk - AR42.10-P-0240RG

Model 190

Courtesy of MERCEDES-BENZ USA

Shown with code B07 (AMG - Ceramic brake system)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	Notes on evaluating brake disks with and without wear holes		AH42.10-P-9406-14A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

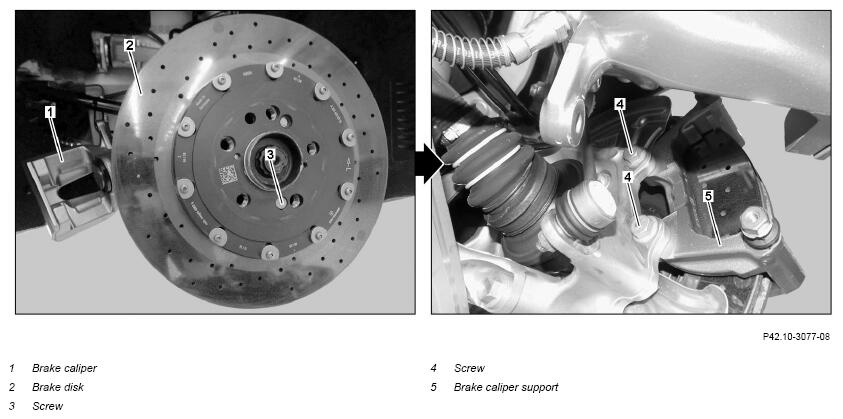

1	Detach brake caliper (1) and fasten to vehicle free of tension with lines attached.	Model 190 except code B07 (AMG - ceramic brake system)	AR42.10-P-0080RG
		Model 190 with code B07 (AMG - ceramic brake system)	AR42.10-P-0080RGA
		Do not stretch, crush or kink the brake hoses and brake lines. This leads to damage to the brake hoses and brake lines, and it can impair their function.

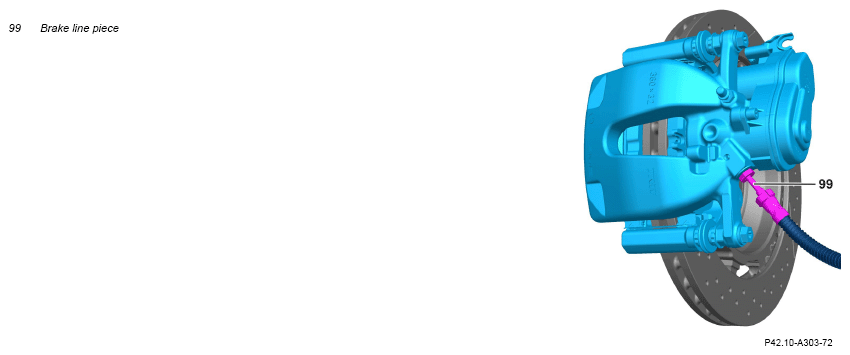

		The brake line pieces (99) of the brake hoses must not be bent. Replace the affected brake hoses with damaged brake line pieces (99) immediately.
		If brake line piece (99) is damaged, ↓ Replace affected brake hose.
			AR42.10-P-0013RG
2	Remove screws (4) and remove brake caliper support (5).	Bolt, fixed brake caliper to wheel carrier	*BA42.10-P-1001-12T
3	Unscrew screw (3) and remove brake disk (2).	replace screw (3).
		Locking bolt of rear axle brake disk	*BA42.10-P-1001-06A
	Check
4.1	Check brake disk (2) for wear and condition.	Model 190 except code B07 (AMG - ceramic brake system)
			AP42.10-P-4258A
		Only sets of brake disks (2) approved by Mercedes-Benz may be installed
		If there is a problem, ↓ replace brake disks (2).
4.2	Check brake disk (2) for wear and condition.	Model 190 with code B07 (AMG - ceramic brake system)
			AR42.10-P-0270RG
		Only sets of brake disks (2) approved by Mercedes-Benz may be installed.
		If there is a problem, ↓ replace corresponding brake disk (2).
	Clean
5	Clean contact surface and interference fit of brake disk (2).	Do not use sharp-edged or pointed objects. Otherwise, the contact surface and interference fit will be damaged.
		Assembly cleaner	*BR00.45-Z-1028-04A
6	Lightly grease interference fit of brake disk (2).	Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
7	Install in the reverse order.
