Prepare Soft Top Canvas - AR77.31-P-1001-04RGR

Model 190.4

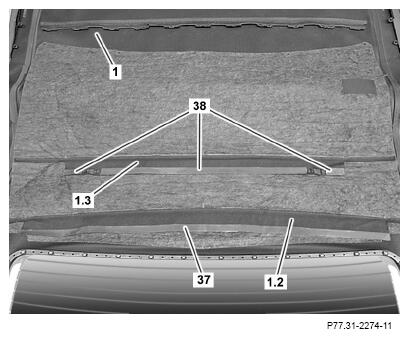

1. Affix tape strips (37), as shown, on retaining tab (1.2) on soft top canvas (1).

   The retaining tab (1.2) is folded backward.

2. Affix tape strips (38), as shown, on retaining tab (1.3) on soft top canvas (1).

   The retaining tab (1.3) is folded backward.

   Courtesy of MERCEDES-BENZ USA

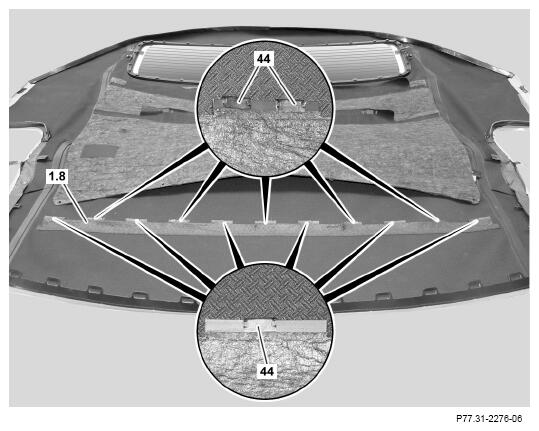

3. Attach new retaining clamps (44) on retaining strip (1.8).

   Courtesy of MERCEDES-BENZ USA

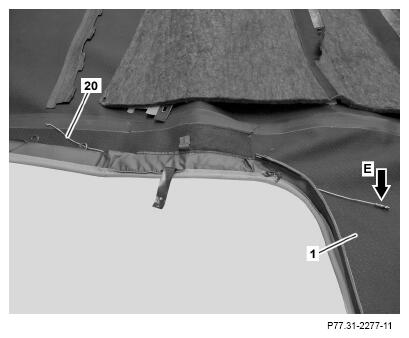

4. Insert new tensioning cable (20) on left and right side in soft top canvas (1).

   Eyelet (arrow E) of tensioning cable (20) should face backward.

   Courtesy of MERCEDES-BENZ USA
