Prepare Panoramic Roof Frame For Installation - AR77.21-P-0800-02RG
Model 190.3 with code 416 (Panoramic sunroof)
Prepare panoramic roof for installation
Do not touch present adhesive beads and bonding surfaces (E) with bare fingers and they should be free of dust, oil, grease, wax and other adhesive components or dirt residues.
Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.
Only use materials from repair kit approved and always observe processing notes included.
Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.

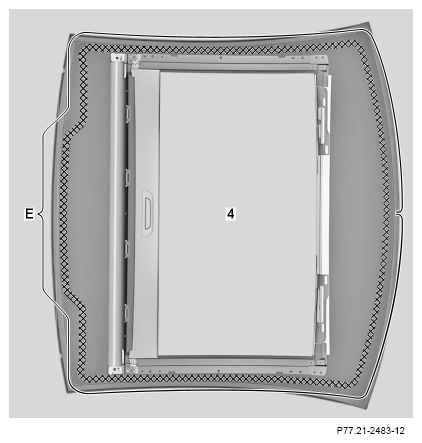

- Check panoramic roof (4) with all detachable body components for damage.
- Install cup suction tool on outside of panoramic roof (4).
- Place panoramic roof (4) on suitable subsurface with inside pointing upward.
- Clean bonding surface (E) on panoramic roof (4).
Apply cleaner to bonding surface (E) and allow to dry completely.
- Apply primer to bonding surface (E).
Observe processing notes for primer. Flash-off time min. 10 minutes.
Otherwise the adhesive force of the adhesive material starts to decrease when installing window.
