Clean Water Drains In Soft Top Compartment - AP77.30-P-7731HW

Model 190.4, 197.4

Shown on model 197.477

Courtesy of MERCEDES-BENZ USA

	Clean
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
1	Open side window.

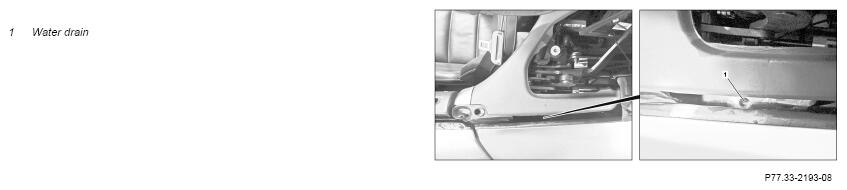

2	Open soft top.	Open soft top only far enough to gain access to the water drains (1) of the soft top compartment.
3	Use suitable tool to clean water drains (1) in soft top compartment.
4	Close soft top.
5	Close side window.
