Check Side Header Bows - AP77.33-P-7751HW
Model 190.4
Model 197.4
Shown on left side of vehicle on model 197.477
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Preparatory activity | |||
| 1 | Open side window. | ||
| 2 | Open soft top. | ||
| Check | |||

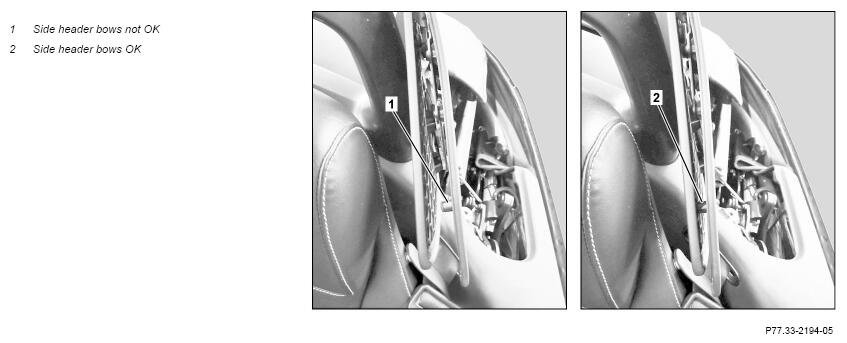

| 3 | Pull outer cover of side header bows approx. 2 cm to overcome the spring action and release. | If the outer cover of the side header bows returns to its original position, ↓ side header bows are OK (2). If the outer cover of the side header bows does not return to its original position, ↓ side header bows are not OK (1). ↓ Adjust side header bows. |
|
| Finishing activity | |||
| 4 | Close soft top. | ||
| 5 | Close side window. |
