Roof System, Basic Function - GF77.20-P-9900A
Model All (4xWD)
Model All (CAR)

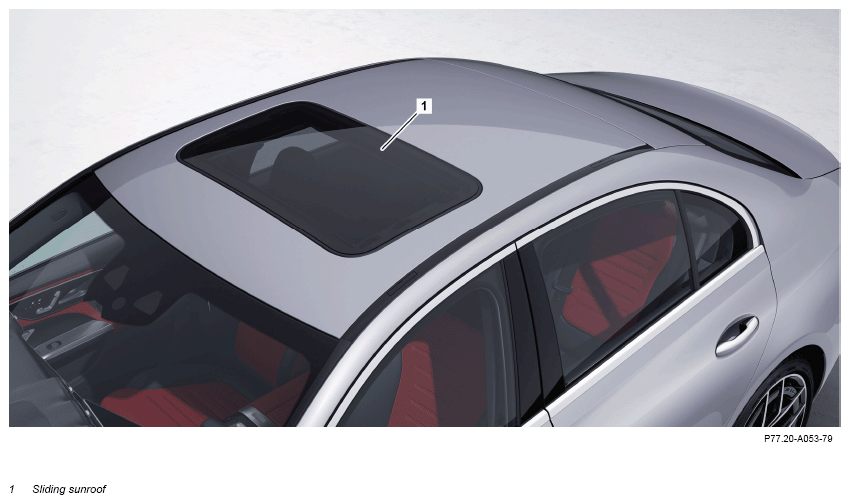

Sample illustration of sliding sunroof

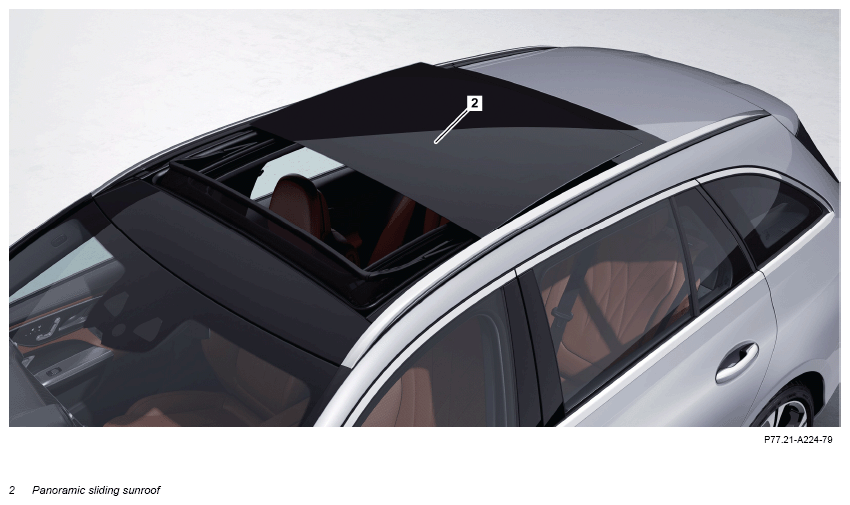

Sample illustration of panoramic sliding sunroof

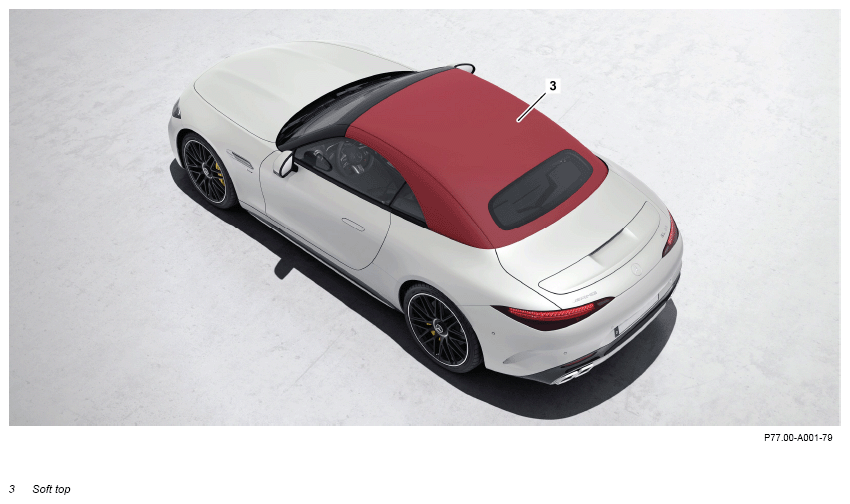

Sample illustration of soft top
Overview
This document contains information on:
- General
- Function
General
Different roof systems are installed depending on the body type and equipment:
- Sliding sunroof (1)
- Panoramic sliding sunroof (2)
- Soft top (3)
Thanks to the roof systems, vehicles are flooded with daylight and they also provide a convenient option for ventilation.
Function
The sliding sunroof (1), panoramic sliding sunroof (2) or soft top (3) opens or closes as a result of different actuation options and depending on the equipment installed.
Sliding sunroof
A roof system in which the movable part is made from heat-insulating safety glass. The movable part is moved under the roof panel when the sliding sunroof (1) is opened.
Panoramic sliding sunroof
A roof system that consists of several glass panels and a sliding sunroof panel and through which light and/or air can enter the vehicle interior. Depending on the vehicle, the sliding sunroof panel can be installed at the front end of the panoramic sliding sunroof (2) and a fixed, integrated glass panel can be installed at the rear end. The sliding sunroof panel can also be installed in the panoramic sliding sunroof (2), between 2 fixed, integrated glass panels.
Soft top
Movable part of a roof system in a convertible or Roadster consisting of soft top canvas, soft top frame, soft top interior trim and potentially a rear-panel window.
The soft top (3) can be opened and closed.
| Further basic functions | |||
| Open/close sliding sunroof, basic function | Model (car, 4xWD) | GF77.20-P-9901A | |
| Basic opening/closing soft top function | Model 232 Model 236 Model 238.4 as of model year 2021 |
GF77.30-P-9900A |
