Remove/Install Trunk Floor Paneling - AR68.30-P-4820RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove edge guard in working area
2	Remove rear center assembly paneling		AR68.30-P-4785RG
3	Remove hazard warning triangle

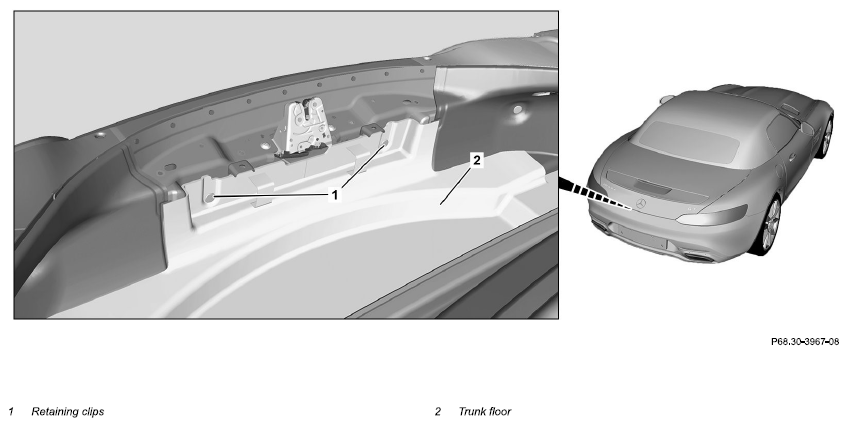

4	Unclip retaining clips (1) and remove trunk floor paneling (2)	Clip remover	Fig 1
5	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
