Remove/Install Front Luggage Compartment Lining - AR68.30-P-4602RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove edge guard in working area
2	Remove luggage compartment paneling		AR68.30-P-4820RGR

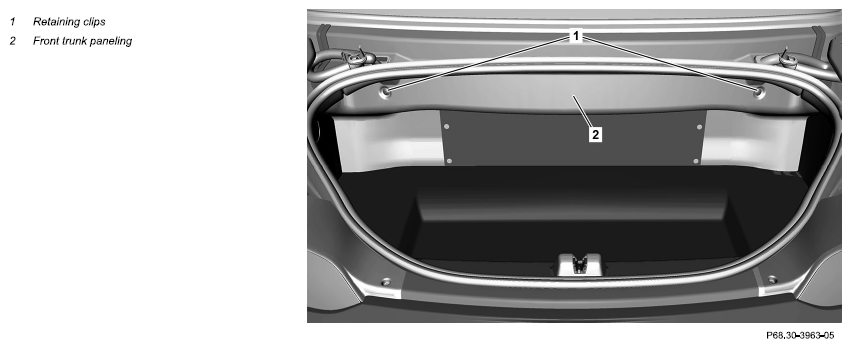

3	Unclip retaining clips (1)	Clip remover	Fig 1
4	Remove front luggage compartment paneling (2)	Ensure that it is seated correctly in area of side luggage compartment paneling.
5	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
