Remove/Install Line From Cartridge To Inerting System In Engine Compartment - AR86.10-P-0219GQA
Model 166, 292 With Engine 276, 278 With Code 2U8 (Alternative refrigerant)
Shown On Model 292 With Engine 278

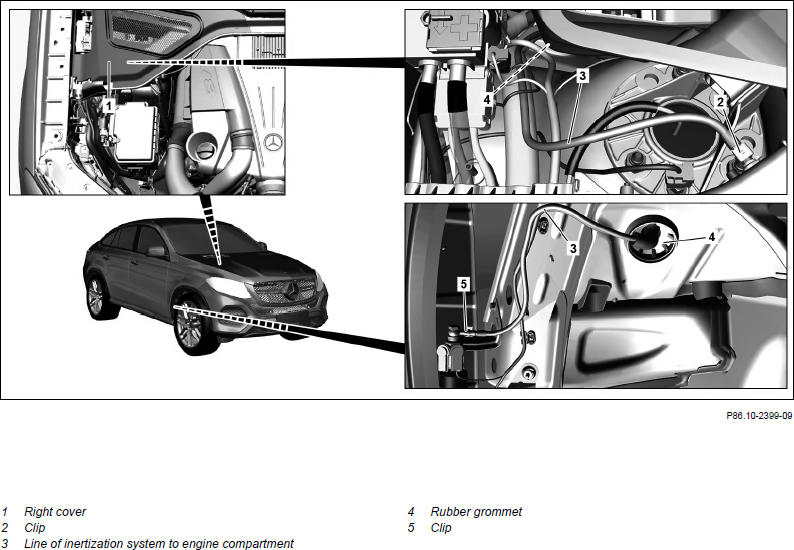

Fig 1: Line From Cartridge To Inerting System In Engine Compartment Components Location - Model 166 With Engine 276, 278 With Code 2U8 (Shown On Model 292 With Engine 278)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 2 | Remove trim panel (1) on the right | ||
| 3 | Detach clamp (2) from inertization system line to engine compartment (3) | ||
| 4 | Expose line set of inertization system line to engine compartment (3) from clamp (2) to rubber grommet (4) | ||
| 5 | Remove rear section of right front fender liner | AR88.10-P-1321GQC | |
| 6 | Remove soundproofing element from rear section of fender | ||
| 7 | Install pulling aid on upper end of line set of inertization system line to engine compartment (3) | ||
| 8 | Loosen clamp (5) | ||
| 9 | Expose line set of inertization system line to engine compartment (3) from clamp (5) to rubber grommet (4) | ||
| 10 | Remove line set on inertization system line to engine compartment (3) through rubber grommet (4) downward from vehicle | ||
| 11 | Remove pulling aid from line set on inertization system line to engine compartment (3) | When replacing inertization system line to engine compartment (3). | |
| 12 | Install in the reverse order |
