Remove/Install Rear Section Of Front Fender Liner - AR88.10-P-1321GQC
Model 166, 292

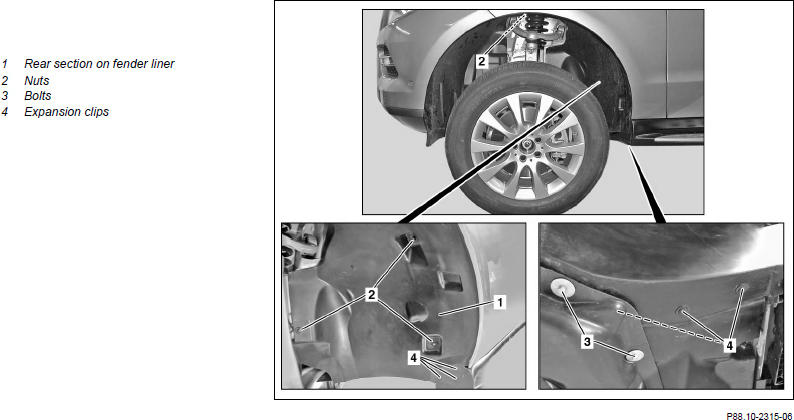

Shown on model 166
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000GZ | |
| 2 | Unscrew nuts (2) | ||
| 3 | Remove bolts (3) | ||
| 4 | Remove expansion clips (4) | Fig 2 | |
| 5 | Remove rear section on fender liner (1) | ||
| 6 | Install in the reverse order |
