Remove/Install Inertization Cartridge - AR86.10-P-0106GQA
Model 166, 292 with engine 157, 276, 278 with code 2U8 (Alternative refrigerant)
MODIFICATION NOTES
| 27.09.2018 | Special tool added. | Operation step 3 |

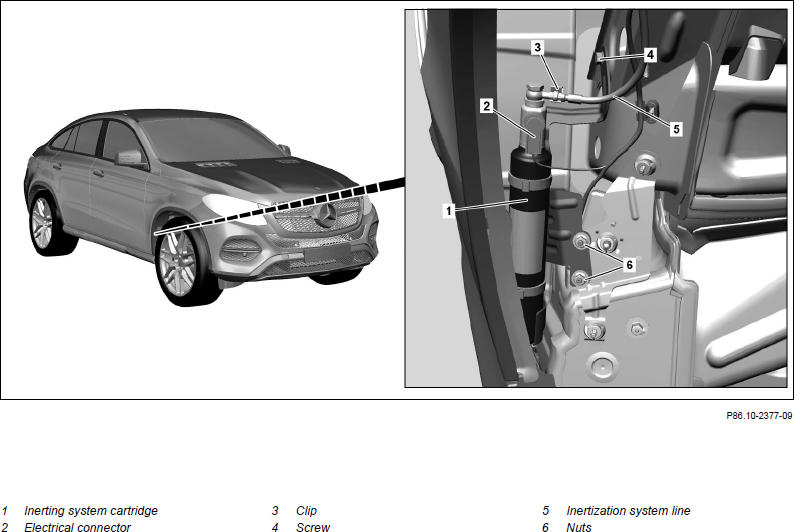

Fig 1: Inertization Cartridge Components Location - Model 166 With Engine 157, 276, 278 With Code 2U8
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003GZ | |
| 2 | Remove rear section of the front right fender liner. | AR88.10-P-1321GQC | |
| 3 | Release and disconnect electrical connector (2). | Fig 2 | |
| 4 | Release clamp (3). | ||
| 5 | Disconnect inerting system line (5) from inerting system cartridge (1). | ||
| 6 | Unscrew nuts (6). | ||
| 7 | Unscrew screw (4). | ||
| 8 | Remove inerting system cartridge (1) with bracket. | ||
| 9 | Install in the reverse order. |
