Remove/Install Throttle Valve Actuator - AR07.51-P-1401OGR

ENGINE 642 in model 166, 292

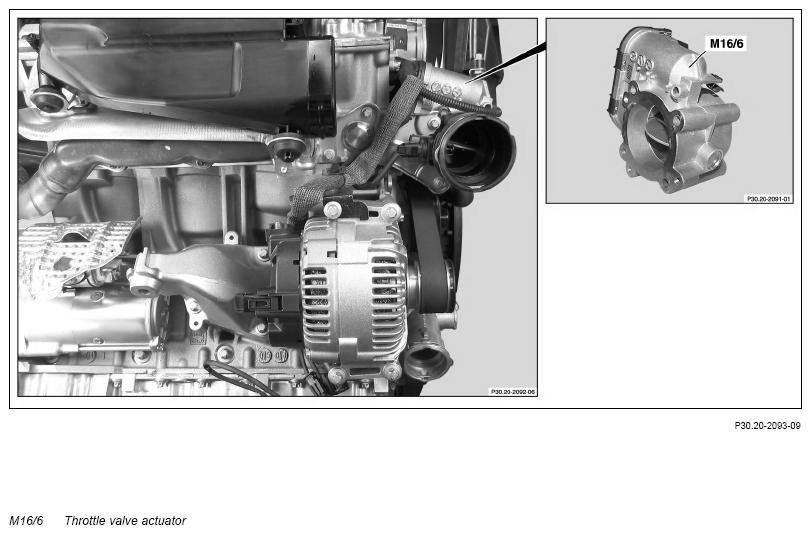

Fig 1: Throttle Valve Actuator Components Location - Engine 642 In Model 166

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove noise damper downstream of charge air cooler		AR09.40-P-6925GZB
2	Disconnect electrical connection at throttle valve actuator (M16/6)
3	Remove ENGINE charge air duct downstream of charge air cooler		AR09.41-P-8624OGR
4	Remove screw/bolts for throttle valve actuator (M16/6) on mixing chamber	Throttle valve actuator to mixing chamber	*BA09.41-P-1008-01J
5	Remove throttle valve actuator (M16/6)	: Replace seal.
6	Install in the reverse order

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		ENGINE 642
BA09.41-P-1008-01J	Throttle valve actuator to mixing chamber	Nm	5
