Remove/Install Noise Damper Downstream Of Charge Air Cooler - AR09.40-P-6925GZB
Engine 642 in model 164, 166, 251, 292
Illustration shows model 164

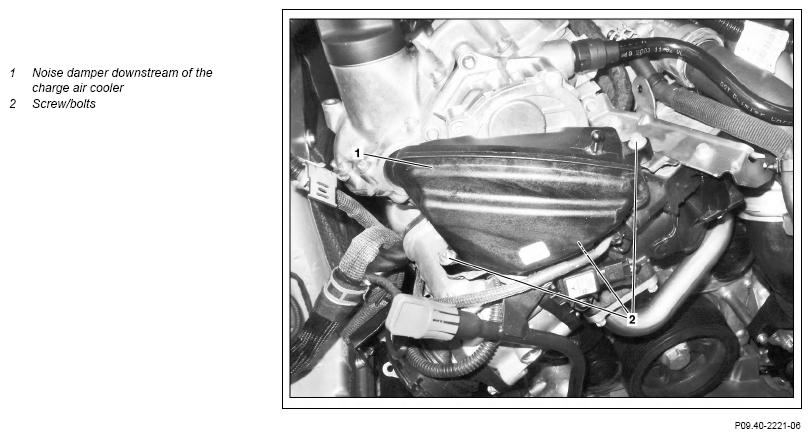

Fig 1: Noise Damper Downstream Of Charge Air Cooler Components Location - Engine 642 In Model 166 (Shown On Model 164)
| Remove/install | |||
| 1 | Removes strut tower brace | Engine 642 in model 164.8 | AR62.30-P-2500GY |
| 2 | Remove engine cover | Engine 642 in model 164, 166, 251, 292 | |
| Engine 642 in model 164 | AR01.10-P-2405GZB | ||
| Engine 642 in model 251 | AR01.10-P-2405RTB | ||
| 3 | Remove screw/bolts (2) | *BA09.41-P-1007-01J | |
| 4 | Remove noise damper downstream of charge air cooler (1) | ||
| 5 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out an engine test run |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA09.41-P-1007-01J | Noise damper downstream of charge air cooler to mixing chamber | Nm | 9 |
