Remove/Install Exhaust Pipe Downstream Of Turbocharger - AR49.10-P-5532OGR
Engine 642 in model 166, 292
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on self-locking Nuts and Bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Remove bulkhead wall | ||
| 2 | Remove windshield wiper system | AR82.30-P-6400GZ | |
| 3 | Remove oxygen sensor upstream of catalytic converter | AR07.04-P-0080OGR | |
| 4 | Remove diesel particulate filter | AR49.10-P-5501OGR | |

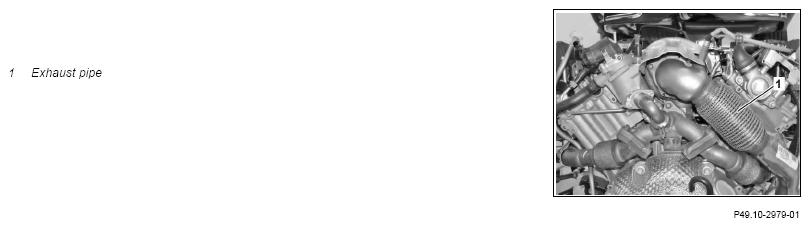

| 5 | Mount assembly tool on exhaust pipe (1) | ||
| Fig 2 | |||
| 6 | Detach exhaust pipe (1) on ATL and remove downwards | ||
| *BA09.40-P-1012-01K | |||
| Clean | |||
| 7 | Remove combustion and corrosion residue at separating points | ||
| 8 | Install in the reverse order | ||
| 9 | Clear fault memory using the diagnostic system | ||
| AD00.00-P-2000-04A | |||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out an engine test run and check exhaust system for leaktightness |
TURBOCHARGER
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA09.40-P-1012-01K | Exhaust line to turbocharger | Nm | 20 |
