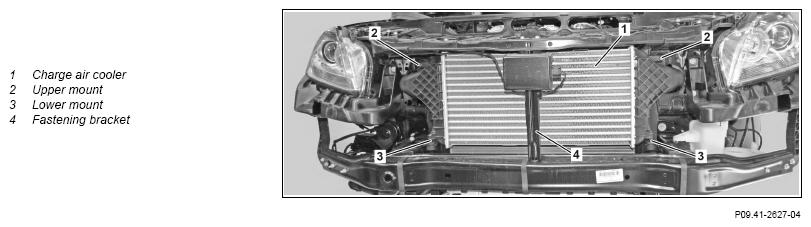

Remove/Install Charge Air Cooler - AR09.41-P-6817OGR
Engine 642 in model 292
Engine 642, 651 in model 166
Shown on model 166
| Remove/install | |||
| 1 | Detach charge air hose upstream of the charge air cooler (1) at the charge air cooler (1) | ENGINE 651 | AR09.41-P-8619CD |
| ENGINE 642 | AR09.41-P-8621OGR | ||
| 2 | Detach charge air hose downstream of the charge air cooler (1) at the charge air cooler (1) | ENGINE 651 | AR09.41-P-8619CD |
| ENGINE 642 | AR09.41-P-8625OGR | ||
| 3 | Remove front bumper | Remove/install front bumper Engine 642 in model 292 | AR88.20-P-2000GQC |
| Engine 642 in model 166 | AR88.20-P-2000GQ | ||
| 4 | Remove mounting bracket (4) | ||
| 5 | Pull charge air cooler (1) out of the upper mount (2) | ||
| 6 | Tilt charge air cooler (1) towards the front and remove from bumper (3) | ||
| 7 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check for leaktightness |
