Remove/Install Charge Air Hose Downstream Of The Charge Air Cooler - AR09.41-P-8625OGR

Engine 642 in model 166, 292

Shown on model 166

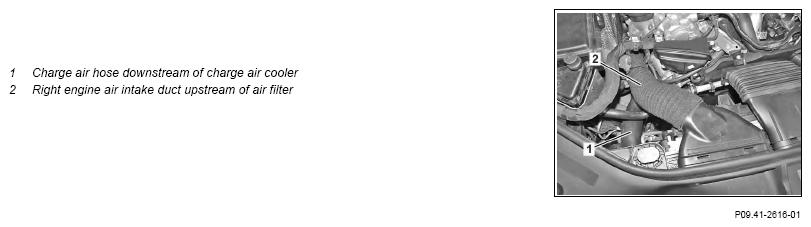

Fig 1: Charge Air Hose Downstream Of The Charge Air Cooler Components Location - Engine 642 In Model 166

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove right engine air intake duct upstream of air filter (2)
2	Remove charge air hose downstream of the charge air cooler (1) at the charge air cooler		AR09.41-P-1311-01AL
		Thoroughly clean connections, check sealing rings and catch springs for damage and correct seating; replace if necessary.
3	Remove charge air hose downstream of the charge air cooler (1) at the engine charge air duct downstream of the charge air cooler		AR09.41-P-1311-01AL
		Thoroughly clean connections, check sealing rings and catch springs for damage and correct seating; replace if necessary.
4	Install in the reverse order
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
5	Perform an engine test run and check for leaktightness
