Remove/Install Telematics Services Communications Module Control Unit - AR82.85-P-0020GQA
Model 166.8
with code 350 (Ecall emergency call system, Europe)
Model 166.8
with code B54 (Live Traffic Information)

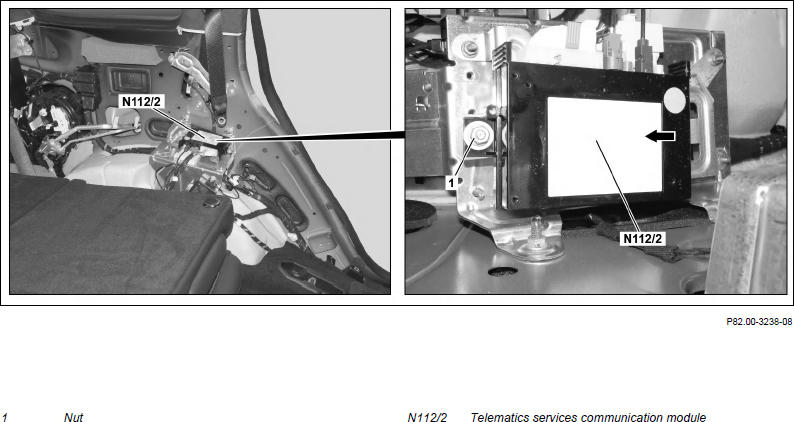

Fig 1: Telematics Services Communications Module Control Unit Components Location - Model 166.8 With Code 350, B54
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of telematics services communications module (N112/2) | When replacing telematics services communications module (N112/2). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove side paneling in left side of luggage compartment | AR68.30-P-4800GQX | |
| 4 | Release and disconnect electrical connectors at telematics services communications module (N112/2) | ||
| 5 | Unscrew nut (1) | ||
| 6 | Lift up and remove telematics services communications module (N112/2) (arrow) | ||
| 7 | Install in the reverse order |
