Remove/Install Tailgate Wiper Motor - AR82.30-P-6900GZ

Model 164, 166

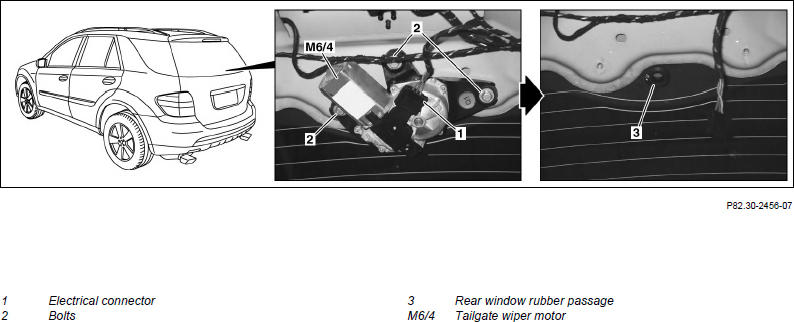

Fig 1: Tailgate Wiper Motor Components Location - Model 166 (Shown On Model 164.1)

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

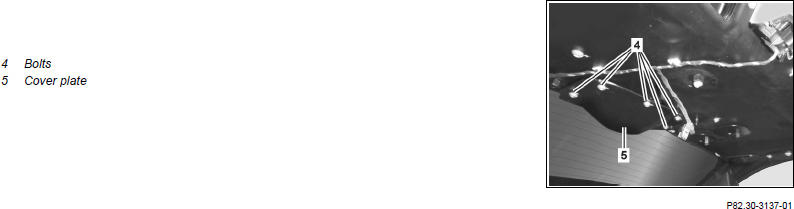

Shown on model 166.0

Courtesy of MERCEDES-BENZ USA

	Injury hazard  from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Remove/install
1	Move wiper motor to parked position
2	Remove rear-end door wiper arm		AR82.30-P-6910GZ
3	Remove door lining from rear-end door	Model 164	AR72.20-P-3520GZ
		Model 166	AR72.20-P-3520GQ
4	Remove screws/bolts (4) and remove cover plate (5)	Model 166 with code Z04 (Light armoring) Screw/bolt, wiper motor cover to liftgate	*BA82.30-P-1006-01J
5	Disconnect electrical connector (1)
6	Remove screws/bolts (2) from rear-end door wiper motor	Bolt on wiper motor	*BA82.30-P-1001-01J
7	Remove rear-end door wiper motor (M6/4)	Replace rubber passage of rear window (3) if necessary. Pay attention to installation position.
8	Install in the reverse order
