Remove/Install Tailgate Wiper Arm - AR82.30-P-6910GZ

Model 164, 166

Shown on model 164.1

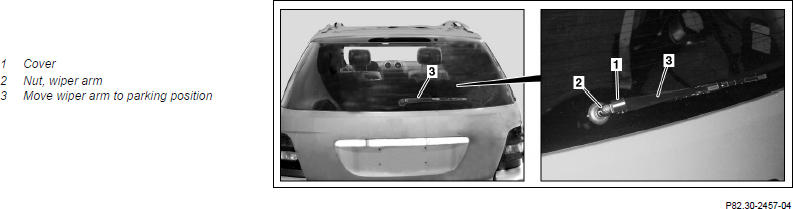

Fig 1: Tailgate Wiper Arm Components Location - Model 166 (Shown On Model 164.1)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Injury hazard  from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
1	Open the cover (1)
2	Unscrew nut for wiper arm (2)	Nut, rear window wiper arm to wiper motor	*BA82.30-P-1004-01J
3	Remove wiper arm in parking position (3)	Fold wiper arm back and remove, use puller if necessary. Puller	Fig 2
4	Install in the reverse order	Mount wiper arm such that the wiper arm points to the right.

WINDSHIELD WIPER

Number	Designation		Model 164.1/8	Model 166
BA82.30-P-1004-01J	Nut, rear window wiper arm to wiper motor	Nm	12	12

Fig 2: Identifying Puller (001 589 38 33 00)

Courtesy of MERCEDES-BENZ USA
