Remove/Install Loudspeakers In Front Doors - AR82.62-P-7845GZ

MODEL 164, 166, 292

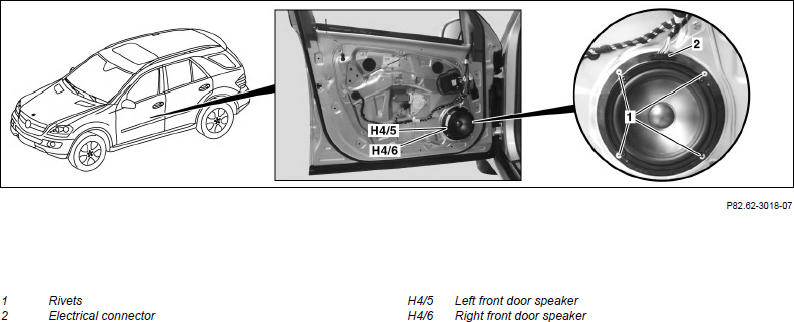

Fig 1: Left/Right Front Door Speaker Components Location - Model 166 (Shown On Model 164.1)

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

	Remove/install
1	Remove door lining from left or right front door	MODEL 164	AR72.10-P-1000GZ
		MODEL 166 without CODE Z04 (Light armoring) without CODE Z05 (B5 armoring on special protection version) MODEL 292	AR72.10-P-1000GQ
2	Disconnect electrical connector (2) from left front door speaker (H4/5) or right front door speaker (H4/6)
3.1	Drill out rivet (1) using a drill bit Ø 4.8 mm	MODEL 164 Rests of rivet must be completely removed. Otherwise corrosion damage may occur. Use hollow rivet, aluminum/steel Ø 4.8 x 15 mm.
3.2	Unscrew bolts	MODEL 166, 292
4	Remove left front door speaker (H4/5) or right front door speaker (H4/6) from door module
5	Install in the reverse order
