(Remove/Install Front Door Lining - AR72.10-P-1000GZ)

MODEL 164

Shown on model 164.1 with automatic rear-end door, code 890

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Pry trim strip (1) off door lining (9)	Mounting wedge	Fig 1
3	Unclip mirror triangle cover (2)	Unclip the mirror triangle cover (2) at the top (arrow).
		Mounting wedge	Fig 1
4	Disconnect electrical connector (3) from left front door tweeter (H4/33)
5	Remove screws (4)
6	Press both central locking buttons simultaneously; remove central locking switch (6) from door lining (9)	Pull the tab visible between the central locking buttons. Do not disconnect the electrical connector (7) from the central locking switch (6).
7	Remove screw (8)
8	Pry off door lining (9)	Unclip the clips at the bottom and side of the door lining in order to prevent the clip holder from breaking off. Installation  : Replace damaged clips.
		Mounting wedge	Fig 1
9	Lift door lining (9) upwards and inwards	In order to provide access to the Bowden cable (10).
10	Detach Bowden cable (10) from inside of door opener
11	Separate electrical connectors (11)	Handle the ribbon cable with care to prevent damage.
12	Remove door liner (9)
13	Install in the reverse order

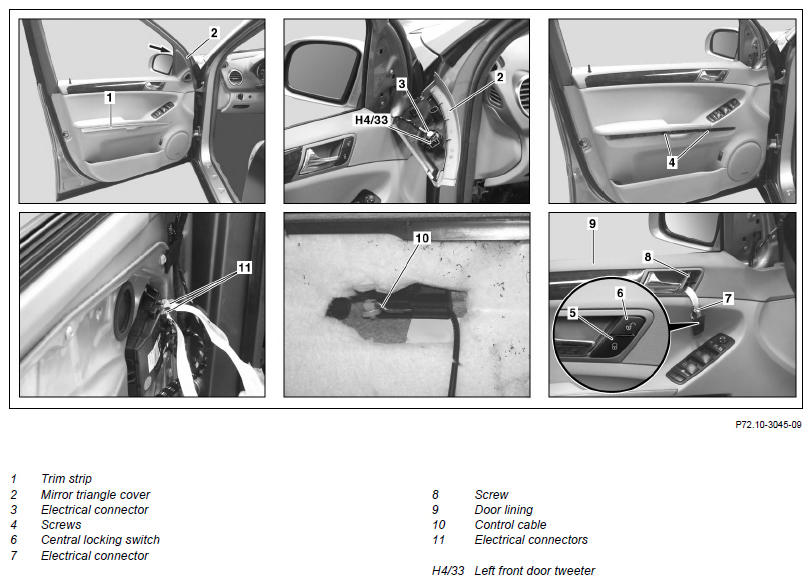

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)
