Remove/Install HERMES Control Unit - AR82.95-P-0019GQA
Model 166.8
with code 360 (HERMES UMTS)
Model 166.8
with code 362 (HERMES communications module LTE)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of the HERMES control unit (N112/9) | When replacing the HERMES control unit (N112/9). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove side paneling in left side of luggage compartment | AR68.30-P-4800GQX | |
| 3 | Release and disconnect electrical connectors from HERMES control unit (N112/9) | ||

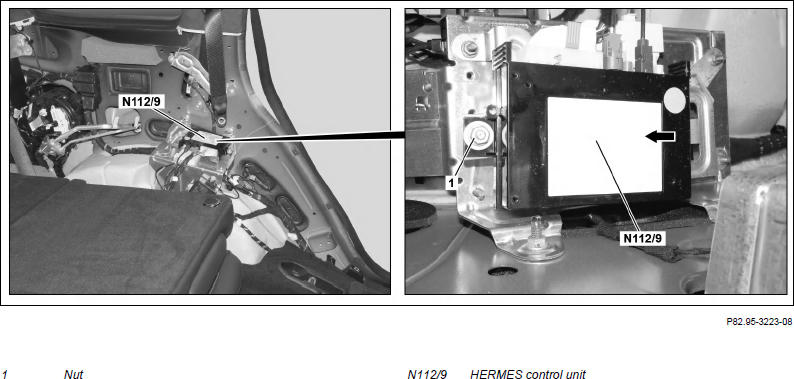

| 4 | Unscrew nut (1) | ||
| 5 | Lift up and remove HERMES control unit (N112/9) (arrow) | ||
| 6 | Install in the reverse order |
