Remove/Install Bass Module Speaker - AR82.62-P-7839GQ

Model 166, 292

with code 810 (Premium sound system)

Model 166, 292

with code 811 (High-End sound system)

Shown on MODEL 166.0 on left side of vehicle

Courtesy of MERCEDES-BENZ USA

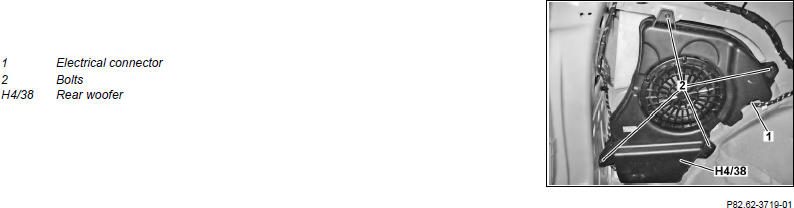

Fig 1: Bass Module Speaker Components Location - Model 166.8 With Code 810, 811 (Right Side Shown)

Courtesy of MERCEDES-BENZ USA

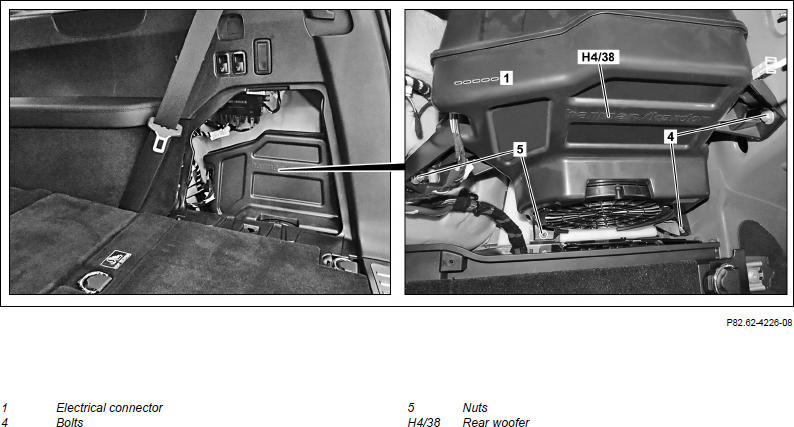

Shown on MODEL 166.8 on right side of vehicle

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Remove side paneling in right side of trunk	Model 166.8 with code 810 (Premium sound system) Model 166.8 with code 811 (High-End sound system)	AR68.30-P-4800GQX
1.2	Remove side paneling in left side of luggage compartment	Model 166.0, 292 with code 810 (Premium sound system) Model 166.0, 292 with code 811 (High-End sound system) Model 166.0 with code 810 (Premium sound system) Model 166.0 with code 811 (High-End sound system)	AR68.30-P-4800GQ
		Model 292 with code 810 (Premium sound system) Model 292 with code 811 (High-End sound system)	AR68.30-P-4800GQC
2	Disconnect electrical connector (1)
3.1	Remove bolts (2)	Model 166.0, 292 with code 810 (Premium sound system) Model 166.0, 292 with code 811 (High-End sound system)
3.2	Unscrew nuts (5) and remove screws/bolts (4)	Model 166.8 with code 810 (Premium sound system) Model 166.8 with code 811 (High-End sound system)
4	Remove rear woofer (H4/38)
5	Install in the reverse order
