Remove/Install Antenna Changeover Switch - AR82.62-P-0010GQA
Model 166.8
with code 386 (Comfort telephony)
with code B24 (Remote control for Auxiliary heating)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove paneling on left side in trunk | AR68.30-P-4800GQX | |

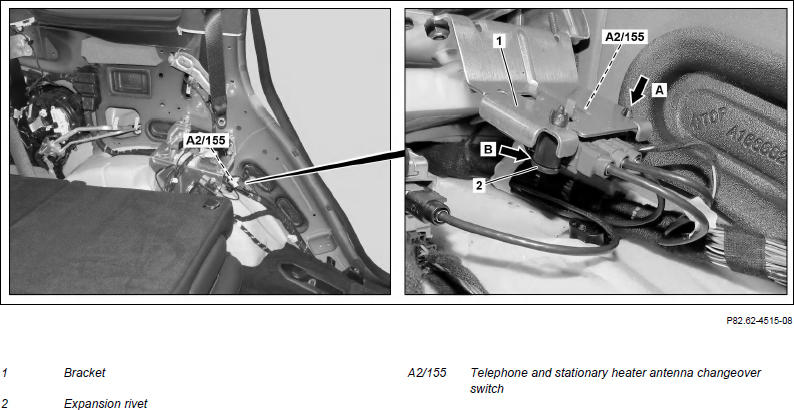

| 2 | Unclip antenna changeover switch for telephone and stationary heater (A2/155) (arrow A) | ||
| 3 | Open expansion rivet (2) with suitable tool at arrow (B) | Fig 2 | |
| 4 | Unclip antenna changeover switch for telephone and stationary heater (A2/155) from bracket (1) | ||
| 5 | Release and disconnect electrical connectors from antenna changeover switch for telephone and stationary heater (A2/155) | ||
| 6 | Install in the reverse order |
