(Overview Of System Components, Telematics - GF82.85-P-9999GR)
MODEL 166 up to model year 2016

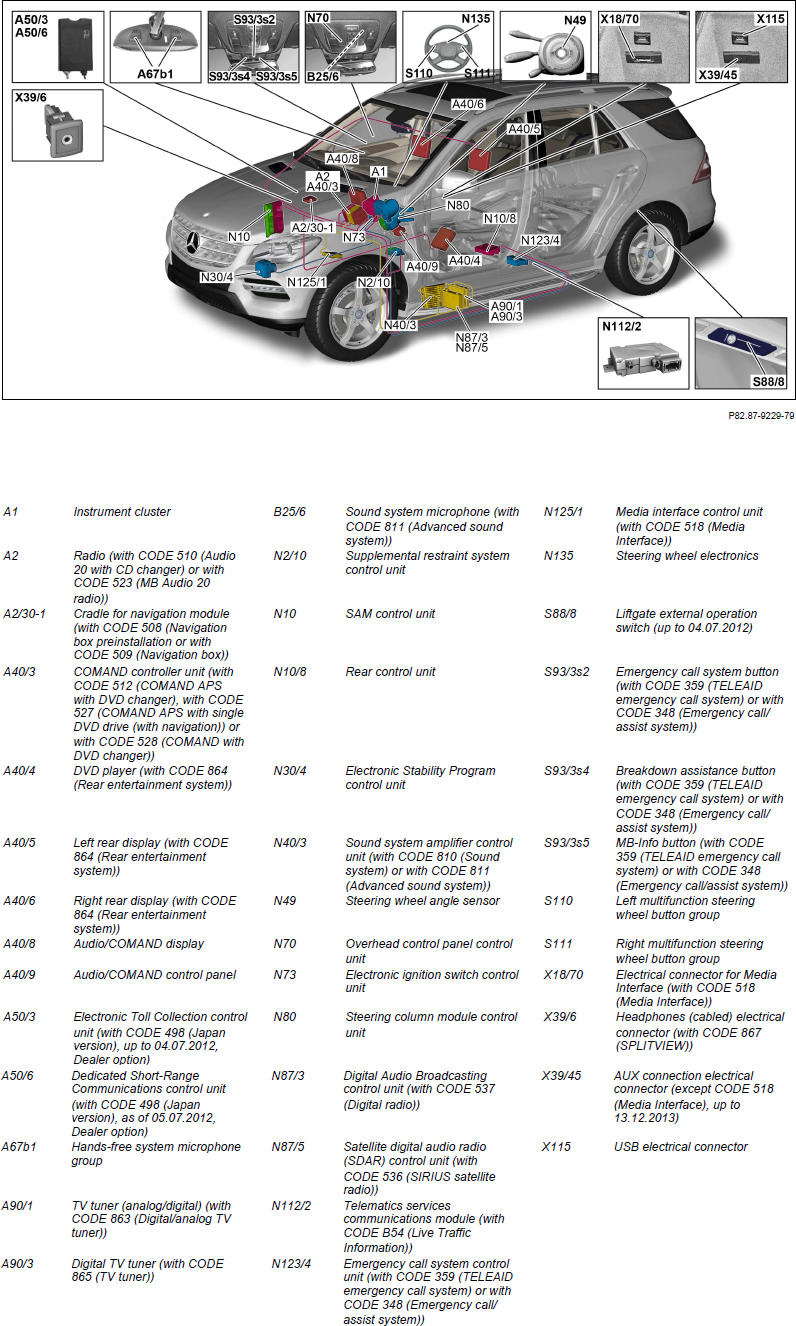

Shown on model 166.0 (without antenna system and speaker system)

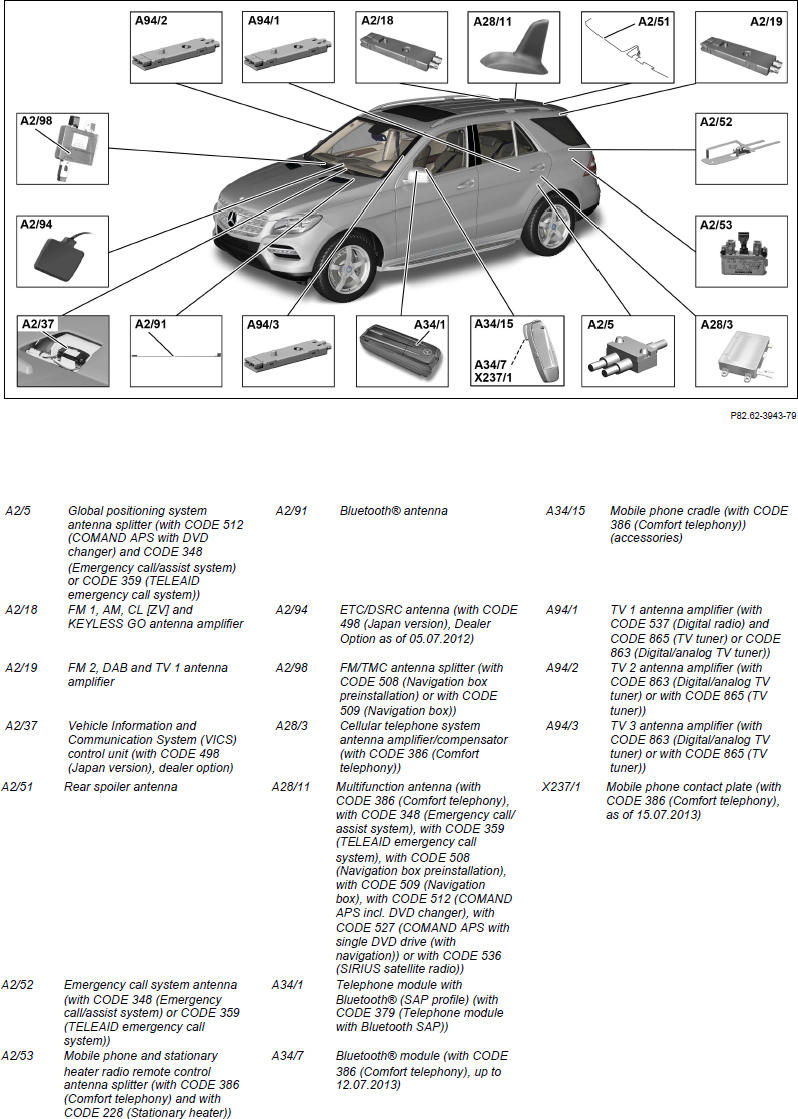

Shown on telematics antenna system on model 166.0

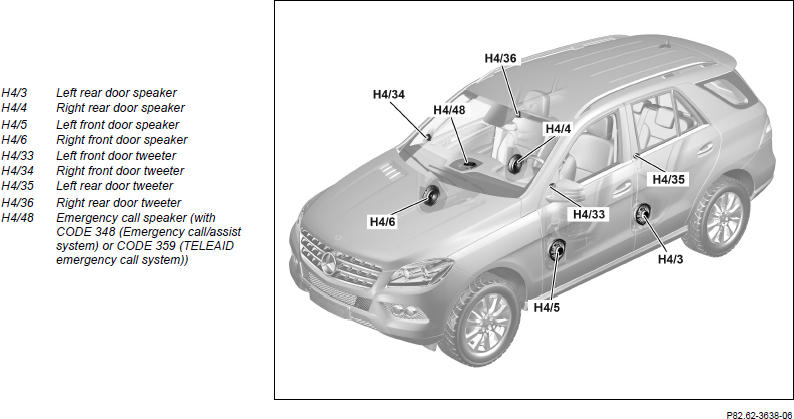

Speaker system without CODE 810 (Sound system) and without CODE 811 (Advanced sound system) shown on model 166.0

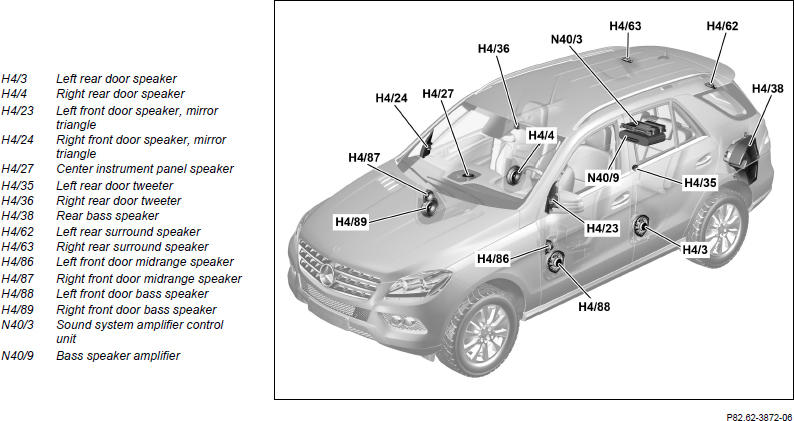

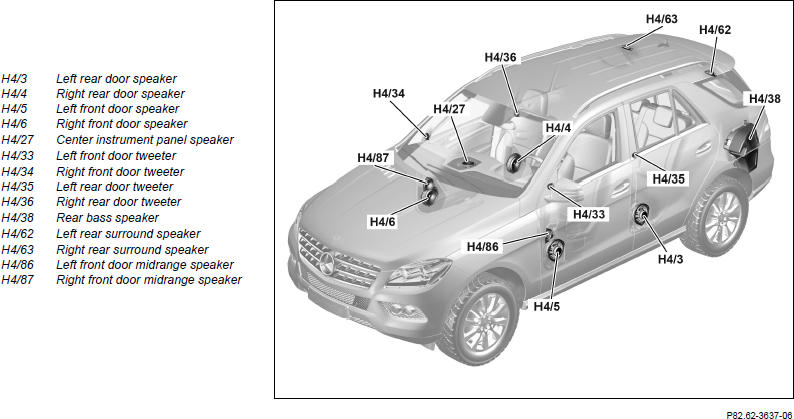

Shown on speaker system with CODE 811 (Advanced sound system) on model 166.0

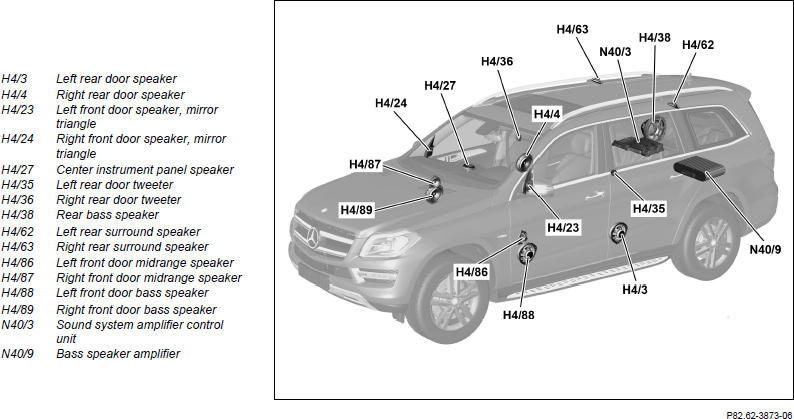

Shown on speaker system with CODE 811 (Advanced sound system) on model 166.8
Shown on speaker system with CODE 811 (Advanced sound system) on model 166.8
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR | |
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Component description for instrument cluster | MODEL 166 up to model year 2016 A1 | GF54.30-P-6000GR | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for TV tuner (analog/digital) | MODEL 166 up to model year 2016 with CODE 863 (Digital/analog TV tuner) A90/1 | GF82.60-P-3106GR | |
| Digital TV tuner, component description | MODEL 166.0 as of model year 2013 up to model year 2016 with CODE 865 (TV tuner) MODEL 166.8 up to model year 2016 with CODE 865 (TV tuner) A90/3 |
GF82.60-P-3118GR | |
| MODEL 166 up to model year 2013 with CODE 865 (TV tuner) A90/3 | GF82.60-P-3118GRJ | ||
| Component description for the radio | MODEL 166 up to model year 2016 with CODE 510 (Audio 20 with CD changer) MODEL 166 up to model year 2016 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122GRA | |
| Component description for media interface control unit | MODEL 166.0 as of model year 2013 up to model year 2016 with CODE 518 (Media interface) MODEL 166.8 up to model year 2016 with CODE 518 (Media interface) N125/1 |
GF82.60-P-5000GRA | |
| MODEL 166.0 up to model year 2013 with CODE 518 (Media interface) N125/1 | GF82.60-P-5000GR | ||
| Component description for Digital Audio Broadcasting control unit | MODEL 166 up to model year 2016 with CODE 537 (Digital radio (DAB)) N87/3 | GF82.62-P-5000GR | |
| Component description for sound system amplifier control unit | MODEL 166 up to model year 2016 with CODE 810 (Sound system) without CODE 811 (Advanced sound system) N40/3 | GF82.62-P-5010GR | |
| MODEL 166 up to model year 2016 with CODE 811 (Advanced sound system) N40/3 | GF82.62-P-5010GRA | ||
| Telematics services communications module, component description | MODEL 166 up to model year 2016 with CODE B54 (Live Traffic Information) N112/2 | GF82.85-P-0220GR | |
| Satellite digital audio radio (SDAR) control unit, component description | MODEL 166 up to model year 2016 with CODE 536 (SIRIUS satellite radio) N87/5 | GF82.85-P-3121GRU | |
| Component description for COMAND controller unit | MODEL 166 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 166 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 166 up to model year 2016 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136GR | |
| Cradle for navigation module, component description | MODEL 166 up to model year 2016 with CODE 508 (Navigation box preinstallation) with CODE 509 (Navigation box) A2/30-1 | GF82.85-P-3137GR | |
| Component description for rear entertainment DVD player | MODEL 166 up to model year 2016 with CODE 864 (Rear compartment entertainment package) A40/4 | GF82.90-P-4009GR | |
| Component description for rear display left/right | MODEL 166 up to model year 2016 with CODE 864 (Rear compartment entertainment package) A40/5, A40/6 | GF82.90-P-4020GR | |
| Component description for emergency call system control unit | MODEL 166 up to model year 2016 with CODE 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212GRV | |
| MODEL 166 up to model year 2016 with CODE 359 (TELE AID emergency call system) without CODE 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212GRU | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| Table of contents for function description, telematics | GF82.85-P-0993GR |
