Remove/Install Inside Rearview Mirror - AR68.40-P-0001GQA
Model 166
as of model year 2016
Model 292
| Risk of injury caused by irritation of the skin, eyes and respiratory system through contact or inhalation of substances contained in the mirror lens. | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||

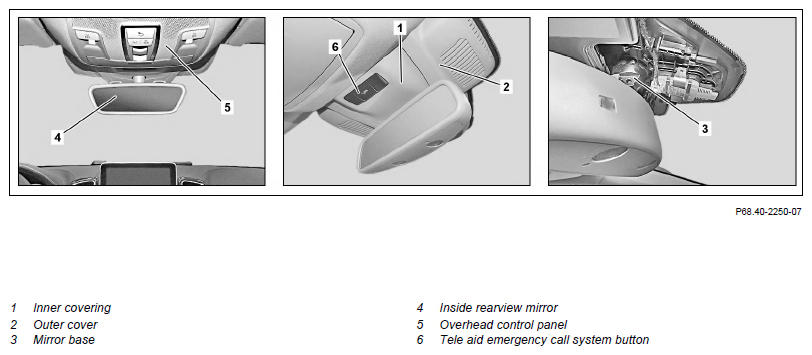

| 2 | Unclip inner cover (1) from outer cover (2) | ||
| 3 | Disconnect electrical connector from Tele aid emergency call button (6) | Model 166 as of model year 2016 with code 347 (Mercedes-Benz emergency call system) Model 166 as of model year 2016 with code 348 (Emergency call/assistant system) Model 166 as of model year 2016 with code 359 (TELE AID emergency call system) Model 292 with code 348 (Emergency call/assistant system) Model 292 with code 359 (TELE AID emergency call system) |
|
| 4 | Unclip outer cover (2) | ||

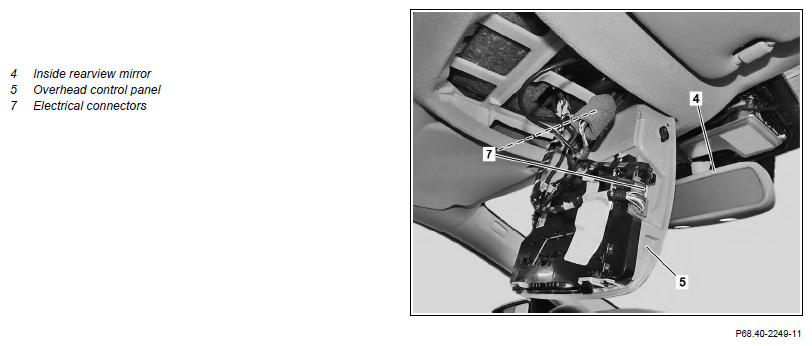

| 5 | Detach overhead control panel (5) until electrical connectors (7) are accessible | Model 292 | AR82.20-P-1100GQC |
| Model 166 as of model year 2016 |
AR82.20-P-1100GQ | ||
| 6 | Disconnect electrical connectors (7) and remove electrical lines from headliner | ||
| 7 | Turn inside mirror (4) on mirror base (3) with suitable tool until the mirror holder unlocks perceptibly | Turn mirror base (3) clockwise to loosen. Otherwise the electrical connector on the rain/light sensor can be damaged. |
|
| 8 | Remove inside rearview mirror (4) | ||
| 9 | Install in the reverse order |
