Internet Connection Function - GF82.60-P-2040GN

Model 166

as of model year 2016 up to model year 2017

Model 292

up to model year 2017

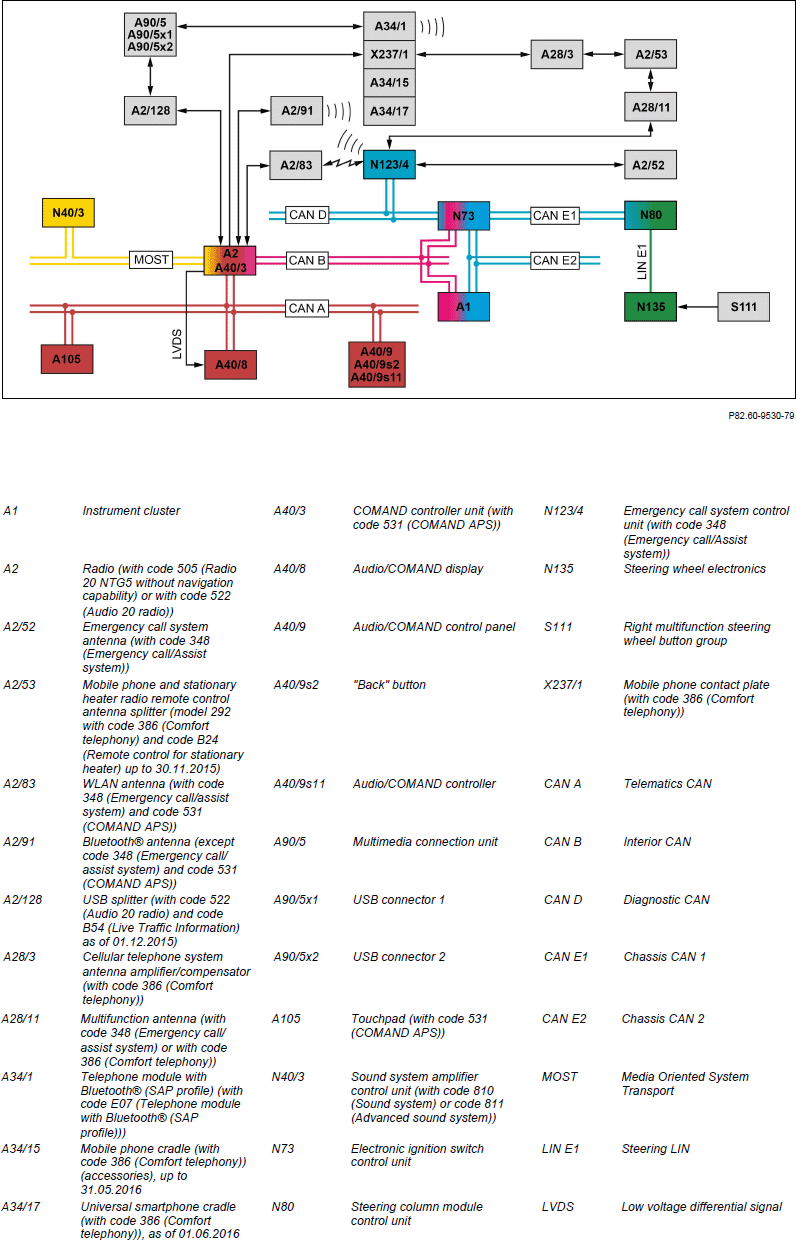

G14136898Courtesy of MERCEDES-BENZ USA

Shown on model 166, 292

Function requirements for Internet connection, general

Internet connection, general

The following controls can be used for operation of the function:

The audio equipment receives the signals from the Audio/COMAND control panel via telematics CAN.

The COMAND controller unit receives the signals from the touchpad (with code 531 (COMAND APS)) over the telematics CAN.

The signals of the right multifunction steering wheel button group are forwarded via the following route:

Steering wheel electronics →

Steering LIN →

Steering column tube module control unit →

Chassis CAN 1 →

Electronic ignition lock control unit →

Chassis CAN 2 →

Instrument cluster →

Interior CAN →

Audio unit

The audio equipment evaluates the signals of the "ON" button.

The Internet connection function is divided into the following subfunctions:

Additional function requirements for Internet access (dial-up) in vehicles with code 348 (Emergency call/Assist system)

Internet access (dial-up) in vehicles with code 348 (Emergency call/Assist system)

The function is activated by calling up the menu, e.g. via the application bar on the Audio/COMAND display. The selection is confirmed e.g. by pressing the Audio/COMAND controller on the Audio/COMAND control panel.

The signals from the Audio/COMAND control panel are received by the audio equipment via telematics CAN, processed and shown on the Audio/COMAND display via an LVDS line.

The Mercedes-Benz Internet and Application Gateway is generally used as the server for the connection to the Internet. Through the encrypted connection to the Mercedes-Benz Internet and Application Gateway, the user is only generally identifiable as a user of the Mercedes-Benz Internet and Application Gateway when surfing and using services and cannot be located in the network via his/her activities.

IMPORTANT If the COMAND controller unit is used as a hotspot or if the IP-Radio service is activated, the data traffic is not processed via the Mercedes-Benz Internet and Application Gateway.

The audio equipment sends data into the mobile telephone network via the following route:

WLAN antenna (with code 531 (COMAND APS)) or Bluetooth® antenna (except code 531 (COMAND APS)) →

Emergency call system control unit →

Multifunction antenna or emergency call system antenna

IMPORTANT If the multifunction antenna malfunctions or the reception quality is poor, the emergency call system control unit automatically sends and receives the Internet signals over the emergency call system antenna.

According to the requests from the audio equipment, the Mercedes-Benz Internet and Application Gateway exchanges data with the World Wide Web and the service providers via the Internet and sends the received data in the opposite direction to the audio equipment.

IMPORTANT Activating a manual or automatic emergency call, breakdown assistance or an MB information call interrupts the Internet connection.

Additional function requirements for Internet access (dial-up) in vehicles without code 348 (Emergency call/Assist system)

Internet access (dial-up) in vehicles without code 348 (Emergency call/Assist system)

The function is activated by calling up the menu, e.g. via the application bar on the Audio/COMAND display.

With a connection via Personal Area Network (PAN), the Internet enable function must be activated on the mobile phone.

With a connection via Dial-up Networking (DUN), the dial-in data must be provided via the audio equipment. By turning the Audio/COMAND controller, the "System" panel is shown in the foreground on the Audio/COMAND display. After selection or addition of the mobile telephone network provider, further access information (e.g. on the tariff) must be specified that can be obtained from the mobile telephone network provider. As soon as the data is available, the connection to the Internet is set up.

The signals from the Audio/COMAND control panel are received by the audio equipment via telematics CAN, processed and shown on the Audio/COMAND display via an LVDS line.

IMPORTANT Fees: Internet access and services are free from Mercedes-Benz. However, fees must be paid to the mobile telephone network provider in accordance with the respective mobile phone contract. Display options and the "Scissors" (disconnect connection) soft key in the function bar make it easier to manage costs with either a time or data volume contract.

The Mercedes-Benz Internet and Application Gateway is generally used as the server for the connection to the Internet. Through the encrypted connection to the Mercedes-Benz Internet and Application Gateway, the user is only generally identifiable as a user of the Mercedes-Benz Internet and Application Gateway when surfing and using services and cannot be located in the network via his/her activities.

IMPORTANT The data traffic of the IP-Radio service is not processed via the Mercedes-Benz Internet and Application Gateway.

With basic telephony, the audio equipment sends the signals via the Bluetooth® antenna to the mobile phone, which establishes the connection to the mobile telephone network.

On vehicles with code 386 (Comfort telephony), the audio equipment sends the signals into the mobile telephone network via the following route when comfort telephony is used:

Bluetooth® antenna →

Mobile phone →

Mobile phone cradle (accessories) up to 31.05.2016 or universal Smartphone cradle as of 01.06.2016 →

Mobile phone contact plate →

Cellular telephone system antenna amplifier/compensator →

Mobile phone and stationary heater radio remote control antenna splitter (model 292 with code B24 (Remote control for stationary heater) up to 30.11.2015) →

Multifunction antenna

On vehicles with code E07 (Telephone module with Bluetooth® (SAP)), data can be transferred from the audio equipment to the telephone module with Bluetooth® (SAP) via two different routes. We recommend connecting the telephone module with Bluetooth® (SAP) via the integrated USB interface (Universal Serial Bus) and a connecting cable to the multimedia connection unit, as a higher data transfer rate is hereby achieved. The data is transferred here by the audio equipment via the following route:

USB splitter (with code 522 (Audio 20 radio) and code B54 (Live Traffic Information)) →

USB connector 1 (except code 522 (Audio 20 radio) and code B54 (Live Traffic Information)) or USB connector 2 of multimedia connection unit →

Connecting cable →

Telephone module with Bluetooth® (SAP profile)

If the telephone module with Bluetooth® (SAP) is not connected to the multimedia connection unit, it receives the data from the audio equipment via the Bluetooth® antenna. The application quality is restricted by the low data transfer rate in case of a connection via Bluetooth®.

The telephone module with Bluetooth® (SAP profile) sends the data via the following route into the mobile telephone network:

Mobile phone contact plate →

Cellular telephone system antenna amplifier/compensator →

Mobile phone and stationary heater radio remote control antenna splitter (model 292 with code B24 (Remote control for stationary heater) up to 30.11.2015) →

Multifunction antenna

According to the requests from the audio equipment, the Mercedes-Benz Internet and Application Gateway exchanges data with the World Wide Web and the service providers via the Internet and sends the received data in the opposite direction to the audio equipment.

IMPORTANT Multiple use of mobile phone: Basically, several functions can be processed at the same time via mobile phones that are suitable for the Internet connection function, i.e. it is possible to make phone calls while connected to the Internet. However, this depends on the quality of the respective network. If the network connection is too weak, the Internet connection is merely maintained while the telephone call is being made.

Internet usage

The Internet can be used in the vehicle in the following ways:

The services of the Mercedes-Benz Internet and Application Gateway are supplementary to the navigation system and can be used while driving. Free surfing is only possible if the vehicle is stationary. The audio equipment receives the speed signal from the instrument cluster via interior CAN.

The Internet can be operated with the following components:

IMPORTANT Internet use is demonstrated below by way of an example through operation on the Audio/COMAND control panel.

Audio signals from the Internet can also be played back. The audio equipment outputs the audio signals from the Internet via the speaker system or transmits them via MOST to the sound system amplifier control unit in vehicles with code 810 (Sound system) or code 811 (Advanced sound system).

IMPORTANT If, for a specific period of time, no control signals are activated for the Internet function, the audio equipment automatically disconnects the Internet connection. If necessary the Internet connection is automatically set up again.

IMPORTANT Model 166

as of model year 2016 up to model year 2017

except code 494 (US version)

Model 292

up to model year 2017

except code 494 (US version)

The time period for automatic disconnection can be defined on the "System" panel.

Use of Mercedes-Benz Internet and Application Gateway services

By turning the Audio/COMAND controller, the panel for the services is shown in the foreground on the Audio/COMAND display. The selection is confirmed by pressing the Audio/COMAND controller on the Audio/COMAND control panel. The individual services and the options for the services can now be actuated in the same way using the Audio/COMAND control panel. The method of operation and the screen displays have been adapted to the general operation of the audio equipment as have the design of the displays on the Audio/COMAND display so that operation is essentially intuitive.

The signals from the Audio/COMAND control panel are received by the audio equipment via telematics CAN, processed and shown on the Audio/COMAND display via an LVDS line.

The following services can be used via the Mercedes-Benz Internet and Application Gateway (examples):

IMPORTANT For example, the Internet radio can also be used. Additional services are available or can be retrofitted.

Search for points of interest

Search term can be selected from list or entered on the character bar on the audio/COMAND display. Points of interest can be searched for as a search term at the current location, navigation destination, arbitrary location (free entry) or along the route.

IMPORTANT The area that is being searched is defined under "Options". The search results appear in the form of a list. If the list entry contains a telephone number, a telephone connection can be set up.

Search results can be stored in the address book or under "personal points of interest" on the SD card (Secure Digital) in the SD card slot of the audio equipment (except code 505 (Radio 20 NTG5 non-navigation capable)).

A selected search result can be transferred to the navigation system, and in this case the audio equipment switches to the navigation menu.

Weather

Weather information is displayed either as a weather data table or as a weather map.

In the basic setting the current weather data for the current location of the vehicle and forecasts for the next few hours are displayed.

However, different time periods and locations can be selected, such as information about the weather along the route or at the destination. In addition city names or ZIP codes can be entered with the character bar on the audio/COMAND display. The most up-to-date measurements and forecasts are always displayed.

IMPORTANT Weather data is sent from the weather station nearest to the entered location. It can take a while to transfer and display the respective data, particularly if maps are being displayed or with a weak network connection.

Additional function requirements for loading points of interest or routes (with code 348 (Emergency call/Assist system))

IMPORTANT POIs or routes that have been sent to the vehicle via the Internet (e.g. via Google Maps) are also transmitted to the vehicle via the Service Center.

Load POIs or routes (with code 348 (Emergency call/Assist system))

The Service Center transmits POI's or routes via the mobile telephone network and the multifunction antenna (or the emergency call system antenna) to the emergency call system control unit. If circuit 15 is OFF, the emergency call system control unit stores the data in an integrated buffer.

IMPORTANT If the capacity of the buffer is exceeded, the oldest POIs or routes are overwritten.

If circuit 15 is ON, the emergency call system control unit transmits the points of interests or routes to the audio equipment as soon as it is switched on via the following path:

Diagnostic CAN →

Electronic ignition lock control unit →

Interior CAN →

Audio unit

The reception of information is displayed by the audio equipment by means of a pop-up window on the Audio/COMAND display. Using the context menu, the points of interest or routes are transferred from the buffer into the navigation system.

IMPORTANT If the point of interest or route is only needed immediately and not permanently, the navigation can be started directly without the point of interest or route being stored permanently. This function is also available without an SD card.

IMPORTANT Because of the limited capacity of the buffer, transmitted POIs and routes are only available for loading for a limited time period (approx. 7 days), and only a limited number of POIs and routes can be made available for loading within the same time period.

IMPORTANT Data for navigation can be sent by the Service Center as part of an emergency call, breakdown assistance or an MB Info call.

Additional function requirements for loading POIs or routes (without code 348 (Emergency call/Assist system))

IMPORTANT Points of interest that have been found on the Internet via Google Maps or routes that have been planned using Google Maps can be transmitted via Google Maps to the vehicle.

Load POIs or routes (without code 348 (Emergency call/Assist system))

The "Load points of interest and routes" service lists the points of interest and routes that have been sent to the vehicle and makes it possible to transfer them from the buffer to the navigation system or the address book of the audio equipment using the context menu. Points of interest and routes that have been sent via Google Maps are only continuously available in the vehicle if they have been transferred to the navigation system of the audio equipment using the "Load points of interest and routes" service.

IMPORTANT If the point of interest or route is only needed immediately and not permanently, the navigation can be started directly without the point of interest or route being stored permanently. This function is also available without an SD card.

IMPORTANT Because of the limited capacity of the buffer, transmitted POIs and routes are only available for loading for a limited time period (approx. 7 days), and only a limited number of POIs and routes can be made available for loading within the same time period.

IMPORTANT If more POIs and routes are sent than can be stored in the clipboard, the oldest POIs and routes are overwritten.

IMPORTANT Model 166

as of model year 2016 up to model year 2017

with code 498 (Japanese version)

Points of interests can be loaded but no routes. The POIs must always be taken from the COMAND controller unit address book and selected from there as the navigation destination.

Additional function requirements for free surfing

Unrestricted surfing

In order to connect to the Internet, either a URL must be entered or a page that is stored under "Favorites" must be selected.

In order to navigate on the page, you can either move the cursor using the Audio/COMAND controller of the Audio/COMAND control panel as though you were using a mouse, or jump from one selectable object (e.g. link) to the next by turning the Audio/COMAND controller on the current page (this highlights the object). A marked link is opened by pressing the Audio/COMAND controller of the Audio/COMAND control panel vertically downwards. The "back" button opens the context menu. When jumping to a text entry field, the character toolbar on the Audio/COMAND display can be used to enter text.

Surfing with the mobile browser is subject to the following technical restrictions:

  Electrical function schematic for mobile phone   PE82.70-P-2051-97NBA
  Electrical function schematic for telematics services function Model 166 as of model year 2016 up to model year 2017 with code 348 (Emergency call/assistant system) Model 292 up to model year 2017 with code 348 (Emergency call/assistant system) PE82.95-P-2074-97NBA
    Model 166 as of model year 2016 up to model year 2017 with code 05U (Remote Online) Model 166 as of model year 2016 up to model year 2017 with code 06U (Mercedes connect me standard services) Model 292 up to model year 2017 with code 05U (Remote Online) Model 292 up to model year 2017 with code 06U (Mercedes connect me standard services) PE82.95-P-2074-97NBB
  Overview of system components, telematics   GF82.85-P-9999GN
