Remove/Install Tilting/Sliding Roof Frame - AR77.20-P-3000CW

MODEL 166, 204.0/2, 212, 218 with CODE 414 (Power glass tilting/sliding roof)

Shown on model 204.0, at left side of vehicle

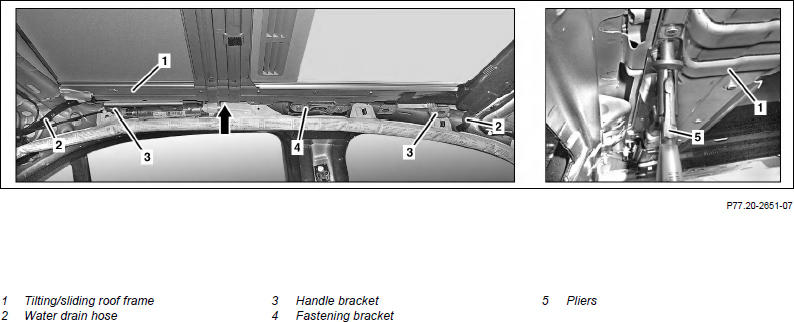

Fig 1: Tilting/Sliding Roof Frame Components Location - Model 166 With Code 414 (Shown On Model 204.0)

Courtesy of MERCEDES-BENZ USA

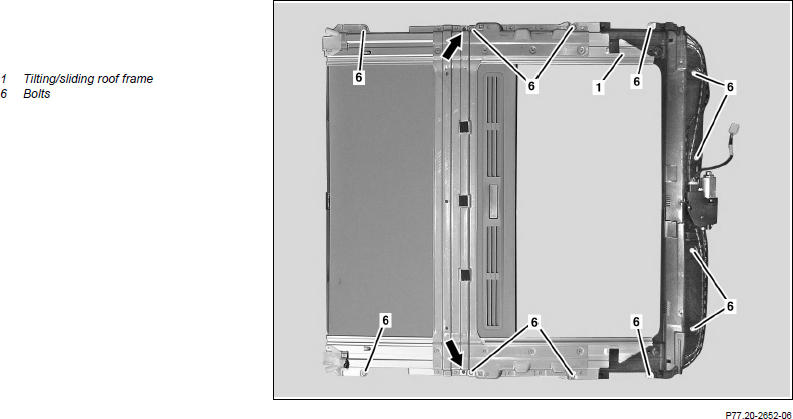

Shown on model 204.0 with tilting/sliding roof (1) removed

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Detach headliner and lay down on seats	MODEL 166, 204.0, 218 with CODE 414 (Power glass tilting/sliding roof)
		MODEL 218.9 with CODE 414 (Power glass tilting/sliding roof)	AR68.30-P-4300ELX
		MODEL 166 with CODE 414 (Power glass tilting/sliding roof) without CODE Z05 (B5 armoring on special protection version)	AR68.30-P-4300GQ
		MODEL 204.0 with CODE 414 (Power glass tilting/sliding roof)	AR68.30-P-4300CW
1.2	Remove headliner	MODEL 204.2, 212.2 with CODE 414 (Power glass tilting/sliding roof)
		MODEL 204.2 with CODE 414 (Power glass tilting/sliding roof)	AR68.30-P-4300CX
1.3	Loosen headliner and lay down on seat with electrical wiring harness connected	MODEL 212.0/1 with CODE 414 (Power glass tilting/sliding roof)
		On vehicles with code (882) Interior monitoring (only with ATA) it is not necessary to disconnect the electrical connector when laying down the headliner, i.e. the rear seat backrest on vehicles without code (287) Through-loading feature or the side bolster on vehicles with code (287) Through-loading feature must not be removed.	AR68.30-P-4300EW
2	Remove water drain hoses (2) on left and right side of tilting/sliding roof frame (1)
3	Disconnect electrical connector from tilting/sliding roof motor
4	Remove grab handle (3) on left and right side of vehicle	MODEL 204.0/2, 212 with CODE 414 (Power glass tilting/sliding roof)
5	Remove mounting console (4) on left and right side of vehicle	MODEL 204.0/2, 212 with CODE 414 (Power glass tilting/sliding roof)
6	Insert one pliers (5) each into corresponding holes (arrows) on left and right side of tilting/sliding roof frame (1)	Pliers	Fig 2
7	Remove screw/bolts (6)	Bolts (6) remain on tilting/sliding roof frame (1). MODEL 212.2 with CODE 414 (Power glass tilting/sliding roof) with CODE 802 (Model year 2012)
		: Tighten center bolt (6) on left and right with torque.	*BA77.20-P-1001-01K
		MODEL 212.2 with CODE 414 (Power glass tilting/sliding roof) with CODE 802 (Model year 2012)
8.1	Remove pliers (5) and tilting/sliding roof frame (1) through door cutout on liftgate from vehicle	MODEL 166 with CODE 414 (Power glass tilting/sliding roof) Helper required.
		Pliers	Fig 2
8.2	Remove pliers (5) and tilting/sliding roof frame (1) through door cutout on right rear door from vehicle	MODEL 204.0/2, 212 with CODE 414 (Power glass tilting/sliding roof) Helper required.
		Pliers	Fig 2
8.3	Remove pliers (5) and tilting/sliding roof frame (1) through door cutout on passenger door from vehicle	MODEL 218 with CODE 414 (Power glass tilting/sliding roof) Helper required.
		Pliers	Fig 2
9	Install in the reverse order
10	Normalize tilting/sliding roof	Close tilting/sliding roof with tilting/sliding roof switch. Continue to hold tilting/sliding roof for min. 1 s in this position. Then move tilting/sliding roof to tilt position "OPEN" until end position is reached. Continue to hold tilting/sliding roof for min. 1 s in this position. Then close tilting/sliding roof.
11	Connect diagnostic system, read out fault memory, perform teach-in run for automatic reversing function of sliding roof
			AD00.00-P-2000-04A

ELECTRIC SLIDING ROOF

Number	Designation		MODEL 212.2 with CODE 414, with CODE 802
BA77.20-P-1001-01K	Bolt, partition net console on sliding roof	Nm	7

Fig 2: Identifying Pliers (164 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
