Remove/Install Outer Support For Panoramic Front Glass Roof - AR77.21-P-0520EW
Model 166, 204.3, 207.3, 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof)
Shown on model 207.3, on left side of vehicle

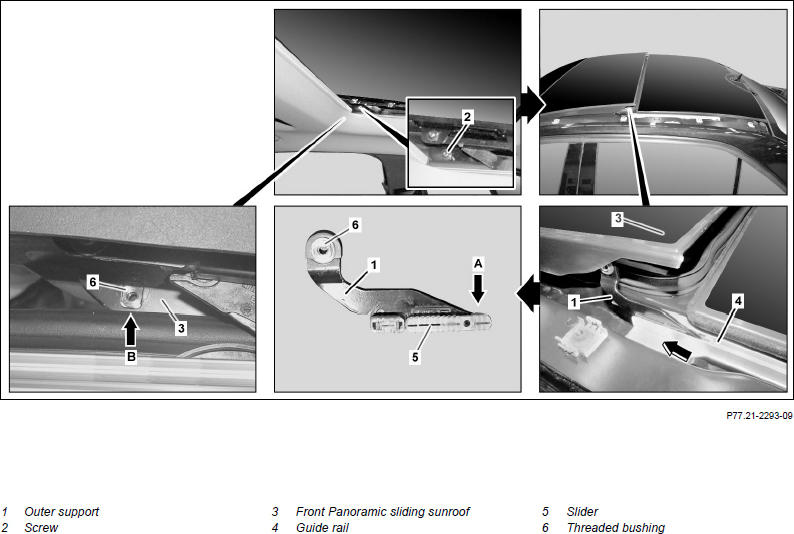

Fig 1: Outer Support For Panoramic Front Glass Roof Components Location - Model 166 With Code 413 (Shown On Model 207.3)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove left and right drip rail from panoramic sliding roof | Model 204.3, 207.3, 212 with code 413 (Automatic panoramic sliding sunroof) | AR88.80-P-4000EW |
| 2.1 | Remove upper and lower rubber element on left and right from front panoramic sliding roof (3) | Model 204.3, 207.3, 212.0/1 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0530EW |
| 2.2 | Remove front panoramic sliding roof (3) | Model 166, 212.2 with code 413 (Automatic panoramic sliding sunroof) | |
| Model 166 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0500GQ | ||
| Model 212.2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0500EW | ||
| 3 | Secure threaded bushing (6) on outer support (1) against twisting and unscrew bolt (2) on left and right outer support (1) | ||
| 4 | Remove outer support (1) from guide rail (4) in direction of arrow | ||
| 5 | Install in the reverse order |
