Remove/Install Panoramic Roof Front Glass Roof Rubber Bellows - AR77.21-P-0530EW
Model 166, 204.3, 207.3, 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof)
Shown on model 212.0 on left side of vehicle

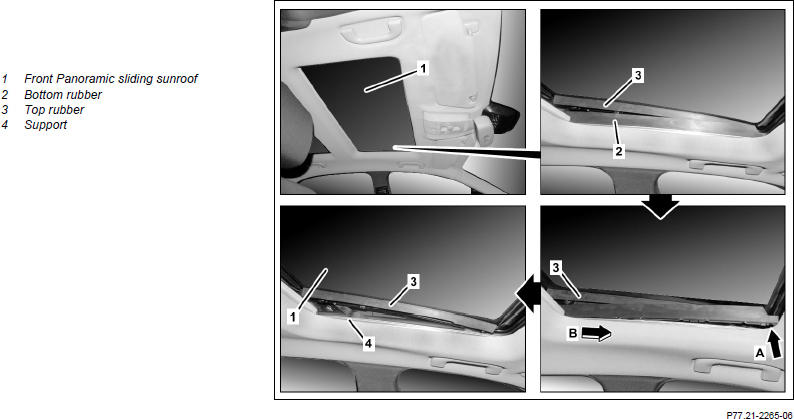

Fig 1: Panoramic Roof Front Glass Roof Rubber Bellows Components Location - Model 166 With Code 413 (Shown On Model 212.0)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open roller sun blind, move front panoramic sliding roof (1) to tilt position | ||
| 2 | Detach bottom rubber (2) in front area (arrow A) from the mount (4) on the panoramic roof rail and remove in the direction of the arrow (arrow B) | ||
| 3 | Unclip upper rubber element (3) from front panoramic sliding roof (1) and remove | ||
| 4 | Install in the reverse order |
