Electric Panoramic Sliding Sunroof, Function - GF77.20-P-0003GN

MODEL 166

As Of Model Year 2016

With Code 413 (Automatic Panoramic Sliding Sunroof)

MODEL 292

With Code 413 (Automatic Panoramic Sliding Sunroof)

Courtesy of MERCEDES-BENZ USA

Function requirements, general

• No consumer shutoff by energy management
• No overvoltage or undervoltage
• Transport mode not activated

Detailed information on the operating state of the transport mode and consumer shutoff is given in the separate function description "Energy management, function".

Electric panoramic sliding sunroof, general

The front section of the panoramic sliding sunroof can be opened and closed again in the tilt or slide position. The extended roller sun blind is retracted previously. The tilting/sliding roof is operated with the sliding roof switch in the overhead control panel control unit.

Overheating protection:

The panoramic sliding sunroof motor or the roller sun blind motor is protected against overheating by a software-based overheating protection in the panoramic sliding sunroof control unit. The temperature in the panoramic sliding sunroof motor or in the roller sun blind motor is calculated in consideration of the voltage, current and duration of actuation as well as outside temperature.

Detection of switch signals:

Actuation of the sliding roof switch is clearly recognized only after t = 40 ± 10 ms. Maximum actuation time t ≥ 20 s. After t ≥ 60 seconds the sliding roof switch is deemed to be "stuck". A new actuation (triggered through the sliding roof switch) can only be performed again after detecting that the sliding roof switch is in the rest position.

The panoramic sliding sunroof can be opened and closed using the comfort functions, which allow the panoramic sliding sunroof to be opened and closed centrally together with the side windows from one control point. These comfort function are described in the theft protection and locking function description in the partial function for convenience feature.

PRE-SAFE®:

The panoramic sliding roof is closed automatically in certain hazardous situations. Detailed information on this can be found in the separate "PRE-SAFE® function" function description.

The panoramic sliding roof function comprises the following partial functions:

• Function sequence for position monitoring
• Function sequence for normalization
• Function sequence for lockup recognition
• Function sequence for automatic reserving function
• Function schematic for opening/closing roller sun blind
• Function sequence for opening/closing panoramic sliding sunroof
• Function sequence for rain closing

Function sequence for position monitoring

The position is monitored by the panoramic sliding sunroof control unit by evaluating the signals from the following sensors:

• Hall sensor 1, panoramic sliding roof
• Hall sensor 2, panoramic sliding roof
• Hall sensor 1, panoramic sliding sunroof roller sun blind
• Hall sensor 2, panoramic sliding roof roller sun blind

The Hall sensors are positioned offset by 90° on the axle of the panoramic sliding sunroof roller sun blind motor and the panoramic sliding sunroof motor. The position of the panoramic sliding sunroof and the roller sun blind is determined by counting the Hall sensor signals. The zero position is set by normalization. The zero position is the position at which the panoramic sliding sunroof and roller sun blinds are closed.

Additional function requirements for normalizing

• Roller sun blind and/or panoramic sliding sunroof denormalized
• The roller sun blind or panoramic sliding sunroof must be a minimum distance away from the normalizing position before being actuated to the normalizing position

Function sequence for normalization

Normalization is the basis for the assignment of the current position to the position of the roller sun blind and/or the panoramic sliding sunroof recognized by the panoramic sliding sunroof control unit. To do so, the panoramic sliding sunroof and/or the roller sun blind must be closed completely.

Manually close the panoramic sliding sunroof or the roller sun blind using the sliding roof switch until the mechanical end stop has been reached. Then press the sliding roof switch again for at least t = 1 second. By evaluating the signals of the Hall sensors, the panoramic sliding sunroof control unit recognizes the blockage and sets the corresponding location counter to zero.

Denormalization is performed under the following conditions:

• With circuit 30 OFF while actuating roller sun blind motor or panoramic sliding roof motor
• If the panoramic sliding sunroof exceeds the defined movement range by 25 motor rotations
• If the defined Hall sensor signal sequence is faulty
• If the positions of the roller sun blind and panoramic sliding sunroof are implausible relative to each other

The position of the panoramic sliding sunroof and the roller sun blind cannot be determined in the denormalized state. Actuation can only be performed in steps of t = 0, 5 s each.

Function sequence for lockup recognition

Blockage is detected if signals from the Hall sensors are no longer detected for a period of t = 160 ms during adjustment.

When the blockage has been recognized in the closing direction by the position monitoring, the roller sun blind motor and the panoramic sliding sunroof motor are first stopped and then actuated in the opposite direction (panoramic sliding sunroof normalized). When the blockage is recognized in the opening direction, the roller sun blind motor and the panoramic sliding sunroof motor are stopped and no longer actuated.

Additional function requirements for automatic reversing function

• Panoramic sliding roof and roller sun blind normalized
• Valid reference data present for automatic reversing function

Function sequence for automatic reserving function

The automatic reversing function is based on the comparison of the current rpm of the panoramic sliding sunroof motor or the roller sun blind motor with the rpm determined during a teach-in run or adaptation. If this comparison exceeds a certain limit value during a closing operation, this is detected as a blockage of panoramic sliding sunroof control unit.

Teach-in mode: During teach-in mode, the panoramic sliding sunroof and the roller sun blind are moved through all closing operations in the normalized state. The panoramic sliding sunroof control module adapts to changes in the rpm resulting from increased sluggishness (e.g. dirt in the mechanical system).

If pinching is detected during opening, the panoramic sliding sunroof and the roller sun blind are stopped. During closing, the panoramic sliding sunroof and the roller sun blinds are stopped when pinching is recognized and then reversed (moved in the opposite direction).

With the automatic closing function, the roof is reversed by s = 145 mm. During rain closing, the roof is reversed by s = 70 mm. With the manual closing function, the roof is reversed by s = 20 mm.

Special case, manual closing:

If the sliding roof switch is actuated again in the closing direction within t = 2 s after reversing, a greater force is allowed. The next closing attempt deactivates the automatic reversing function.

Additional function requirements for opening/closing of roller sun blinds

• Circuit 15R ON or run-on time active (up to t = 5 min after circuit 15R OFF, with front doors not yet open)
• Panoramic sliding roof closed
• Roller sun blind normalized
• Valid reference data present for automatic reversing function of roller sun blind

The electronic ignition lock control unit sends the status of circuit 15 to the panoramic sliding roof control unit via the interior CAN.

The left front door control unit sends the status of the left front door (open or closed) over interior CAN to the panoramic sliding sunroof control unit.

The right front door control unit sends the status of the right front door (open or closed) over interior CAN to the panoramic sliding sunroof control unit.

Function schematic for opening/closing roller sun blind

The roller sun blind can be opened and closed manually or automatically.

The roller sun blind is opened or closed manually by actuating the sliding roof switch to the first detent. The roller sun blind is fully opened or closed automatically by actuating the sliding roof switch past the first detent.

The SAM control unit reads in the status of the sliding roof switch via the roof LIN and transmits it to the panoramic sliding sunroof control unit via interior CAN. The panoramic sliding sunroof control unit actuates the panoramic sliding sunroof motor according to the selected actuation direction. The automatic reversing function is active during closing.

Additional function requirements for opening/closing panoramic sliding sunroof

• Circuit 15R ON or run-on time active (up to t = 5 min after circuit 15R OFF, with front doors not yet open)
• Roller sun blind OPEN
• Panoramic sliding sunroof normalized
• Valid reference data present for automatic reversing function of the panoramic sliding sunroof

If the roller sun blind is closed, it is first fully opened before the panoramic sliding sunroof is opened.

Function sequence for opening/closing panoramic sliding sunroof

The panoramic sliding sunroof can be opened and closed manually or automatically.

The panoramic sliding sunroof is opened or closed manually for the time the request is pending by actuating the sliding roof switch to the first detent. The panoramic sliding sunroof is fully opened or closed automatically by actuating the sliding roof switch past the first detent. The SAM control unit reads in the status of the sliding roof switch via the roof LIN and transmits it to the panoramic sliding roof control unit via the interior CAN. The panoramic sliding sunroof control module actuates the panoramic sliding roof motor according to the selected actuation direction. The automatic reversing function is active during closing. The automatic reversing function is active within a limited range during opening (protection against pinching of glass cover rear edge/roof carrier or roof railing). Automatic opening or closing of the panoramic sliding sunroof is interrupted when the sliding roof switch is actuated again.

The electronic ignition lock control unit sends the status of circuit 15 to the panoramic sliding roof control unit via the interior CAN.

The left front door control unit sends the status of the left front door (open or closed) over interior CAN to the panoramic sliding sunroof control unit.

The right front door control unit sends the status of the right front door (open or closed) over interior CAN to the panoramic sliding sunroof control unit.

Additional function requirements for rain closing

• Circuit 15R OFF or vehicle locked
• Panoramic sliding sunroof normalized
• Valid reference data present for automatic reversing function
• panoramic sliding sunroof opened in sliding position

Function sequence for rain closing

Moistening the windshield is recognized by the rain/light sensor with additional functions. The rain/light sensor with additional functions reads in the signals from the rain sensor directly, evaluates them and sends the rain closing request over the roof LIN, SAM control unit and interior CAN to the panoramic sliding sunroof control unit. The panoramic sliding sunroof control unit actuates the panoramic sliding sunroof motor. The panoramic sliding sunroof is adjusted to the tilt position. Monitoring is then no longer performed.

Furthermore, rain closing is performed even if the no-load current shutoff (t = 6 h) has expired or the voltage or temperature is no longer within the range of the rain sensor.

MODEL 166 as of model year 2016 with CODE 413 (Automatic panoramic sliding sunroof)

with CODE 551 (Anti-theft warning system)

MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)

with CODE 551 (Anti-theft warning system)

During rain closing, an alarm actuation is suppressed by the interior protection to prevent an unintentional actuation of the anti-theft alarm system (ATA).

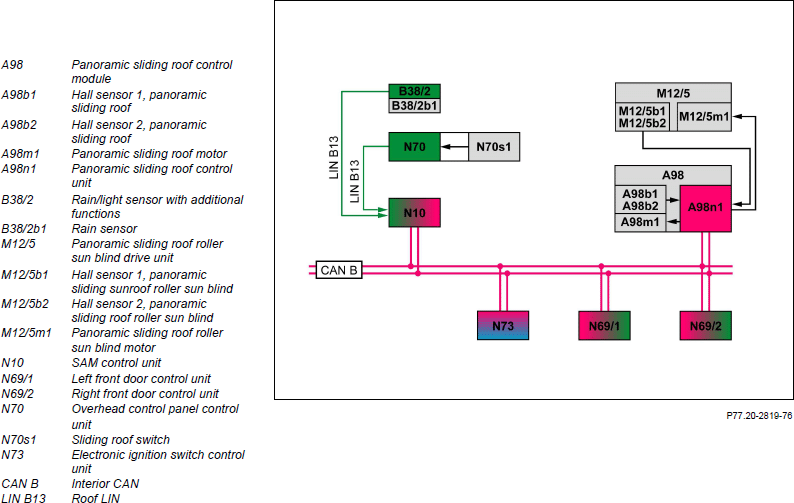

	Electrical function schematic for panoramic sliding sunroof		PE77.20-P-2052-97NBA
	Overview of system components, panoramic sliding sunroof		GF77.20-P-9991GN
