Overview Of System Components, Panoramic Sliding Sunroof - GF77.20-P-9991GN
MODEL 166 as of model year 2016 with CODE 413 (Automatic panoramic sliding sunroof)

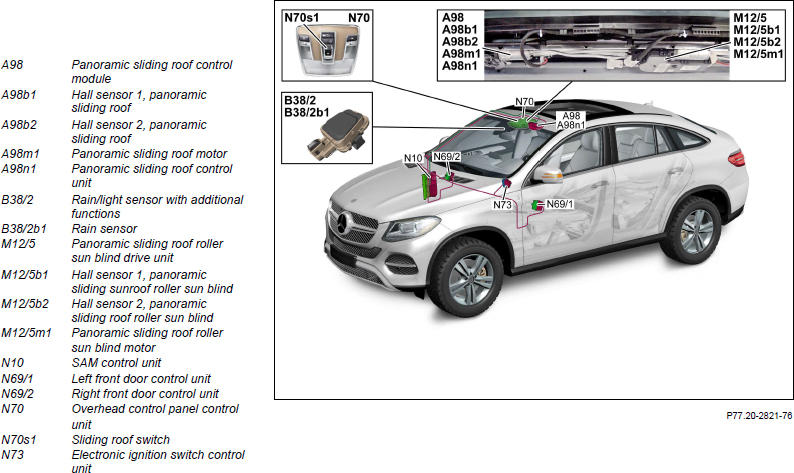

MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof) Shown: Model 292
| Component description for panoramic sliding roof control module | A98, A98n1 | GF77.20-P-4106GN | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005GN | |
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Table of contents, function description for electric panoramic sliding sunroof | GF77.20-P-0997GN |
