Set Basic Position Of The Balance Shaft - AR03.20-P-3638CD

ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221

MODIFICATION NOTES

16.05.2017 Replace special tool Operation steps 6, 7, 9, and 10
G12078935
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
REMOVING Remove
1 Secure vehicle on vehicle lift Engine 651 in model 166 AR00.60-P-0100GZ
    Engine 651 in model 172 AR00.60-P-0100T
    Engine 651 in model 204, 207 AR00.60-P-0100CW
    Engine 651 in model 212, 218 AR00.60-P-0100EWS
    Engine 651 in model 221 AR00.60-P-0100SX
2 Remove timing case cover   AR01.40-P-8000CD
3 Remove oil pan Engine 651 in model 166, 172, 204, 207, 212, 218, 221
Engine 651 in model 166
AR01.45-P-7500GQA
    Engine 651 in model 172 AR01.45-P-7500SLK
    Engine 651 in model 204 (except 204.9), 212 with transmission 711 except code M005 (4MATIC)
Engine 651 in model 204 (except 204.9), 212 with transmission 722 except code M005 (4MATIC)
Engine 651 in model 207 with transmission 711
Engine 651 in model 207, 218 with transmission 722
Engine 651 in model 212 with transmission 724.20 except code M005 (4MATIC)
AR01.45-P-7500CD
    Engine 651 in model 204, 212 with code M005 (4MATIC) AR01.45-P-7500OMD
    Engine 651 in model 204.9 except code M005 (4MATIC) AR01.45-P-7500OND
    Engine 651 in model 221 AR01.45-P-7500SXA
  Adjust
4.1 Set piston of cylinder 1 to top dead center (ignition TDC) with counterholder Engine 651 in model 166, 172, 204, 207, 212, 218, 221 except code B03 (ECO start/stop function)
IMPORTANT Rotate engine at crankshaft in direction of engine rotation until the 00 marking on the belt pulley/vibration damper coincides with the marking on the crankcase.
SPECIAL TOOL Counterholder
Figure
4.2 Set piston of cylinder 1 to top dead center (TDC) with suitable tool Engine 651 in model 166, 172, 204, 207, 212, 218, 221 with code B03 (ECO start/stop function)
IMPORTANT Rotate engine at crankshaft in direction of engine rotation until the 00 marking on the belt pulley/vibration damper coincides with the marking on the crankcase.

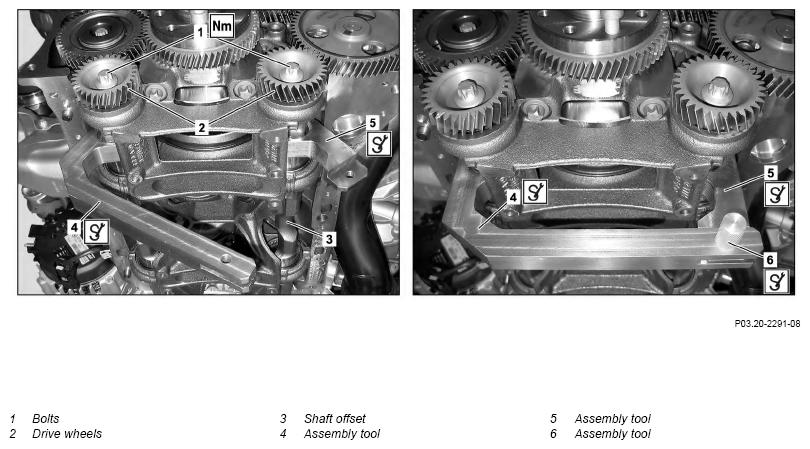

5 Loosen screw/bolts (1) for the drive wheels (2)
6 Turn balance shafts, and position assembly tools (4 and 5) NOTES
The shaft offset (3) must point in the direction of the cylinder head.
Engine damage can occur otherwise.
SPECIAL TOOL Assembly tool
Figure
7 Turn back balance shafts and fix in place with an assembly tool (6) SPECIAL TOOL Assembly tool Figure
8 Tighten screw/bolts (1) on drive gears (2) TORQUE SPECIFICATION Bolt, drive gear to balance shaft *BA03.20-P-1001-02H
9 Detach assembly tool (6) SPECIAL TOOL Assembly tool Figure
10.1 Set crankshaft to 30° after ignition TDC of cylinder 1 with counterholder, and remove assembly tools (4 and 5) Engine 651 in model 166, 172, 204, 207, 212, 218, 221 except code B03 (ECO start/stop function)
SPECIAL TOOL Counterholder
Figure
    SPECIAL TOOL Assembly tool Figure
10.2 Set crankshaft to 30° after ignition TDC of cylinder 1 with suitable tool, and remove assembly tools (4 and 5) Engine 651 in model 166, 172, 204, 207, 212, 218, 221 with code B03 (ECO start/stop function)
SPECIAL TOOL Assembly tool
Figure
11 Check basic position of the balance shafts   AR03.20-P-3637CD
INSTALLING Install
12 Install oil pan Engine 651 in model 166, 172, 204, 207, 212, 218, 221
Engine 651 in model 166
AR01.45-P-7500GQA
    Engine 651 in model 172 AR01.45-P-7500SLK
    Engine 651 in model 204 (except 204.9), 212 with transmission 711 except code M005 (4MATIC)
Engine 651 in model 204 (except 204.9), 212 with transmission 722 except code M005 (4MATIC)
Engine 651 in model 207 with transmission 711
Engine 651 in model 207, 218 with transmission 722
Engine 651 in model 212 with transmission 724.20 except code M005 (4MATIC)
AR01.45-P-7500CD
    Engine 651 in model 204, 212 with code M005 (4MATIC) AR01.45-P-7500OMD
    Engine 651 in model 204.9 except code M005 (4MATIC) AR01.45-P-7500OND
    Engine 651 in model 221 AR01.45-P-7500SXA
13 Install timing case cover   AR01.40-P-8000CD
14 Remove vehicle lift safety device, and lower vehicle Engine 651 in model 166 AR00.60-P-0100GZ
    Engine 651 in model 172 AR00.60-P-0100T
    Engine 651 in model 204, 207 AR00.60-P-0100CW
    Engine 651 in model 212, 218 AR00.60-P-0100EWS
    Engine 651 in model 221 AR00.60-P-0100SX
INSPECT Check
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
15 Check for oil leaks with engine running
BALANCE SHAFT

Number Designation Engine 651
BA03.20-P-1001-02H Bolt, drive gear to balance shaft Stage 1 Nm 50
Stage 2 ∠° 90
Fig 1: Identifying Assembly Tool (651 589 12 63 00)
G12078920Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Counterholder (651 589 00 40 00)
G12078777Courtesy of MERCEDES-BENZ USA
