Remove/Install Intake Port Shutoff - AR09.20-P-1314OGR
ENGINE 642 in MODEL 166, 292
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. |
AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes about Common-Rail components | AH07.16-P-0002-01TX | ||
| Remove/install | |||
| 1 | Remove exhaust gas ATL | Remove/install turbocharger | AR09.40-P-6020OGR |
| 2 | Remove oil supply connection fittings for ATL | AR09.40-P-6023OGR | |
| 3 | Remove soundproofing on both cylinder head covers | ||
| 4 | Remove fuel filter | ||
| Replace fuel filter (ASSYST PLUS) | Engine 642 in model 292 | AP47.20-P-0006AUY | |
| Engine 642 in model 166 | AP47.20-P-0780EWO | ||
| 5 | Unfasten rail on the right | AR07.03-P-1010OGR | |

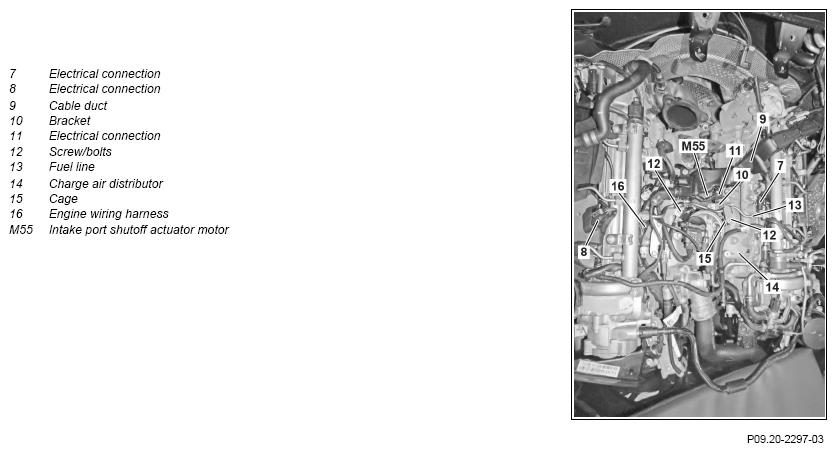

| 6 | Disconnect Electrical connection (11) from intake port shutoff actuator motor (M55) | ||
| 7 | Remove screw/bolts (12) on both clamps of the fuel line (13) | *BA07.16-P-1022-01C | |
| 8 | Unscrew fuel line union nut (13) on left rail | *BA07.16-P-1024-01C | |
| Fig 1 | |||
| 9 | Remove cage (15) for the fuel filter on charge air distributor (14) | *BA47.20-P-1001-02D | |
| 10 | Disconnect electrical connections at fuel injectors for right cylinder head | ||
| 11 | Disconnect electrical connection (8) on camshaft Hall sensor | ||
| 12 | Disconnect electrical connections at the glow plugs | Fig 2 | |
| 13 | Disconnect electrical connection (7) on coolant temperature sensor | ||
| 14 | Expose engine wiring harness (16) and detach cable duct (9) on charge air distributor (14) and on left cylinder head cover | ||
| 15 | Remove bracket (10) | ||

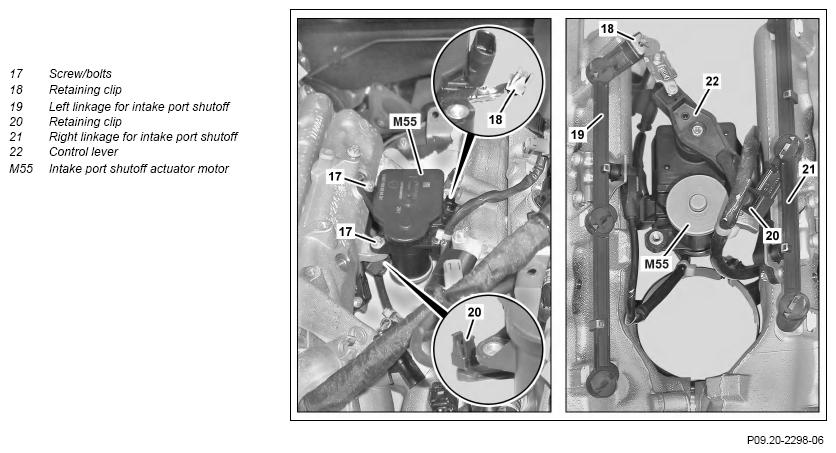

| 16 | Remove screw/bolts (17) for intake port shutoff actuator motor (M55) from charge air distributor (14) | ||
| 17 | Turn intake port shutoff actuator motor (M55) and unclip retaining clip (18) on left intake port shutoff linkage (19) | ||
| 18 | Turn adjusting lever (22) on intake port shutoff actuator motor (M55) until the retaining clip (20) in the right intake port shutoff linkage (21) is accessible and unclip the retaining clip (20) on the right intake port shutoff linkage (21) | ||
| 19 | Remove intake port shutoff actuator motor (M55) | ||
| 20 | Install in the reverse order |
COMMON RAIL DIESEL INJECTION SYSTEM (CDI)
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BA07.16-P-1022-01C | Fuel line to cylinder head cover/lifting eye/charge air manifold | M6x12 | Nm | 9 |
| M6x15 | Nm | 14 | ||
| M6x19 | Nm | - | ||
COMMON RAIL DIESEL INJECTION SYSTEM (CDI)
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BA07.16-P-1024-01C | Fuel line between left and right tail | M15 | Nm | 27 |
FUEL FILTER
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA47.20-P-1001-02D | Bolt, fuel filter cage to charge air manifold | Nm | 12 |
