Remove/Install Oil Supply Connection Fitting Of Turbocharger - AR09.40-P-6023OGR
ENGINE 642 in MODEL 166, 292
| Remove/install | |||
| 1 | Remove exhaust gas ATL | AR09.40-P-6020OGR | |

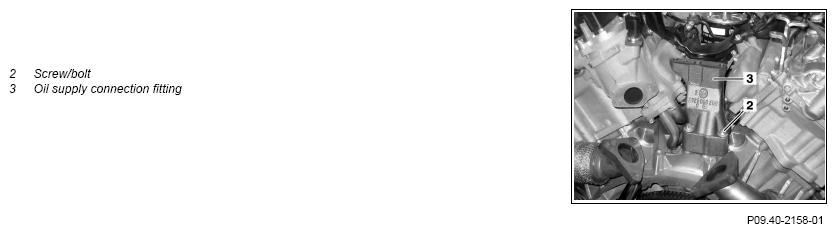

| 2 | Remove screw/bolts (2) from oil supply connection fitting (3) on cylinder crankcase | *BA09.40-P-1008-01K | |
| 3 | Remove oil supply connection fitting (3) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check/correct engine oil level | The vehicle must be horizontal and standing on its wheels. This prevents measurement errors. |
AR18.00-P-3035-01SXI |
with code 474 (Diesel particulate filter) Engine oil |
*BF18.00-P-1001-01S | ||
6 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Check for leaktightness with engine running |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
TURBOCHARGER
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA09.40-P-1008-01K | Bolt, oil supply connection fitting to crankcase | Nm | 20 |
ENGINE LUBRICATION SYSTEM
| Number | Designation | Engine 642.824/826/830/832/834/835/836/838/850/852/853/854/856/858/861/862/867/868/873/932/960/961/970 Engine 642.930 ## as of 458148 | ||
|---|---|---|---|---|
| BF18.00-P-1001-01S | Engine oil | Filling capacity (oil and filter change) | Liter | 8, 0 |
| sheet | BB00.40-P-0223-02A | |||
| sheet | BB00.40-P-0226A | |||
