Remove/Install Radar Sensor For Driver Assistance System In Rear Bumper - AR54.71-P-0003GQ

MODEL 166 with CODE 238 (Active lane keeping Assist)

MODEL 166 with CODE 253 (Rear impact warning and protection system)

	Notes on preventing damage to electronic components due to a magnetic tool		AH54.00-P-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform commissioning of center rear bumper radar sensor (B92/1)	When replacing the center rear bumper radar sensor (B92/1).	AD00.00-P-2000-04A

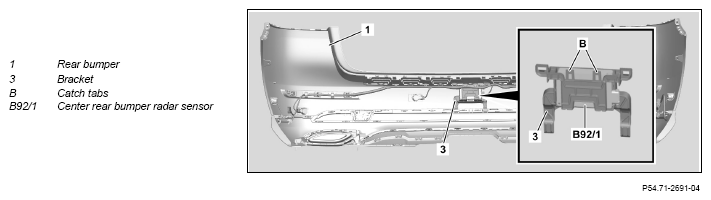

2	Remove rear bumper (1)	Model 166.8	AR88.20-P-2200GQA
		MODEL 166.0	AR88.20-P-2200GQ
3	Disconnect electrical connector from center rear bumper radar sensor (B92/1) and unclip electrical line from bracket (3)
4	Remove bracket (3) with center rear bumper radar sensor (B92/1)
5	Release catch tabs (B) on bracket (3) using a suitable tool and pull center rear bumper radar sensor (B92/1) out of bracket (3) upwards
6	Install in the reverse order
