Remove/Install Rear Bumper - AR88.20-P-2200GQ
MODEL 166.0
MODEL 292

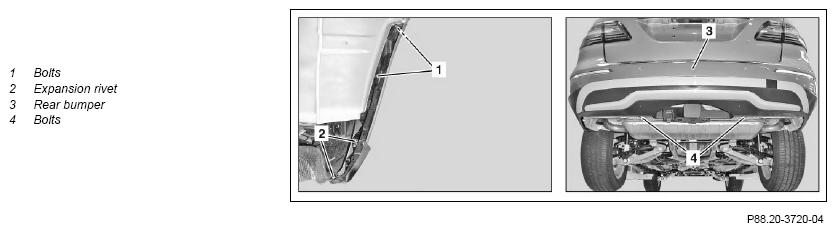

Shown on model 166.0

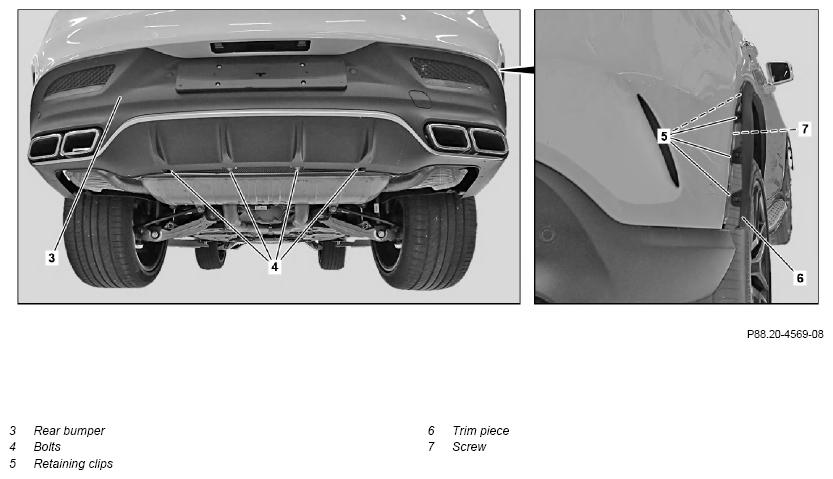

Shown on model 292.374
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove both taillamps | Model 292 | AR82.10-P-4905GQC |
| Model 166.0 | AR82.10-P-4905GQ | ||
| 2 | Detach fender liner in left rear and right rear fender in area of rear bumper (3) | AR88.10-P-1400GQ | |
| 3 | Unclip retaining clips (5) on trim piece (6) in area of rear bumper (3) | Model 292 |
|
| 4.1 | Remove bolts (1) | Model 166.0 |
|
| 4.2 | Unscrew screw/bolt (7) | Model 292 |
|
| 5 | Remove expansion rivets (2) | ||
| 6 | Unclip rear bumper (3) on retaining strip | ||
| 7 | Remove screws (4) | ||
| 8.1 | Remove rear bumper (3) toward rear with aid of helper | Model 166.0 |
|
| 8.2 | Remove rear bumper (3) toward rear with aid of helper | Model 292 |
|
| 9 | Disconnect electrical connectors | The number of electrical connectors varies according to vehicle equipment. | |
| 10 | Install in the reverse order | ||
| 11 | Adjust rear bumper (3) | Gap dimensions on hoods, doors and lids | AR60.00-P-0700-01GQ |
| Gap dimension | *BE60.00-P-1003-01Z | ||
| Figure |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 166 | Model 292 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1003-01Z | Gap dimension | Liftgate to bumper at bottom | Dimension "L" | mm | 5, 5 (± 1, 5) | 5, 5 (± 1) |
| Liftgate to rear fender | Dimension "J" | mm | 4, 8 (± 1) | 4, 0 (± 1) | ||
| Liftgate to bumper at side | Dimension "K" | mm | 4, 9 (± 1, 3) | 5, 0 (± 2) | ||
| Liftgate to roof | Dimension "W" | mm | 5, 5 (± 1, 5) | 5, 0 (± 1) | ||
| Liftgate to rear window | Dimension "O" | mm | 4, 0 (± 1, 0) | 3, 0 (± 1, 0) | ||
| Rear fender to backup | Dimension "M" | mm lamp | 1, 4 (± 0, 7) | 1, 0 (+1-/0, 5) | ||
| D-pillar to rear window | Dimension "V" | mm | - | 4, 5 (± 1, 5) | ||
| For picture, see | AR60.00-P-0700-01GQ | AR60.00-P-0700-01GQ | ||||
